Wet Fish Feed Production Line Manufacturer - China

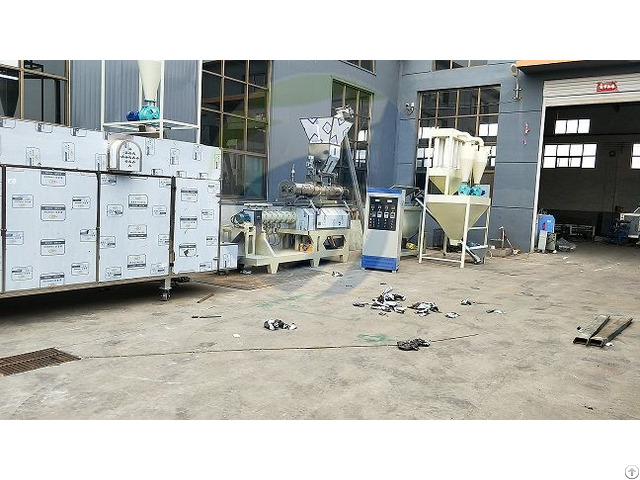

1T/H Wet Fish Feed Production Line

Fusmar is the professional manufacturer of the fish feed pellet machine and production line.

The capacity of the wet fish feed production line is from 500KG/H to 3000KG/H.

This fish feed production line is new developed for home and commercial aquatic fishery.

In order to meet the intensive production of animal fish feed pellets, the production line has multi specifications.

It can produce shrinking fish feed pellets, floating fish feed pellets, pet feed, animal feed.

Wet Fish Feed Production Line Adavantages

1 - Wide application: this factory can produce floating and slowly sinking fish feed and pet food, which is applicable to fish farms, fish feed manufacturers and pet food factories.

2 - Large capacity range: the capacity range is from 50 kg/h to 3000 kg/h.

Whether for personal or commercial use, you can find the right model here at a competitive price.

3 - Strict detail control.

Equipped with PLC control box and alarm device to ensure smooth and safe operation.

4 - Reasonable configuration.

Lower energy consumption, smaller footprint, less investment in construction projects.

5 - Simple assembly and disassembly.

It helps with quick shipping and installation.

Fish feed wet extrusion related machine

Feed mill→feed mixer→wet fish feed extruder→granule dryer→automatic weighing packaging machine

1 - Material Grinding - Feed Hammer Ggrinding

The ingredients should be ground to the desired size by a feed mill.

We offer three types of feed mills to meet your different requirements: A series feed hammer mills for small and medium feed extrusion plants; C series feed hammer mills for large and medium livestock and aquafeed mills B series hammer mill, also known as wide chamber concentrate hammer mill, is mainly used for fine grinding of special aquatic feed.

2 - Material Mixing - Feed Mixer

Thoroughly mixing materials to ensure extrusion efficiency and improve feed quality.

We offer two feed mixers to choose from: a two-axis high-efficiency mixer for mixing powdered, granulated, flaked and block materials, and a feed ribbon mixer for mixing powdered materials.

These two blenders can be customized with an atomized spray system to more evenly add liquids such as molasses and grease.

3 - Extrusion Process - Wet Floating Feed Particle Extruder

Wet fish feeders are equipped with regulators and require a steam boiler.

Wet fish feed extruders have higher capacity than dry extruders, so wet extruders are generally suitable for large feed pellet plants.

4 - Granule drying - feed pellet dryer

Our mesh belt dryer is a continuous convection belt dryer.

The pellets formed by the extruder are stacked in layers on a wire mesh or perforated belt conveyor and continuously conveyed through the drying chamber.

Fish Feed Granule Dryer During this process, dry air is repeatedly passed through the product layer until the particles have an optimum moisture content before leaving the dryer.

If you choose a wet fish feeder, we recommend a gas granule dryer.

5 - Granule Packaging - Electronic Packaging Machine

In order to make the finished granules easy to store, transport and catch the customer's eyes, they should be properly packaged.

With our electronic weighing and packaging machine, the finished granules can be automatically packaged, weighed, conveyed and sealed, saving manpower and time and meeting the needs of large-scale production.

For this type of packaging machine, automatic hot coding, automatic seam sewing and automatic thread cutting can be optional features.
