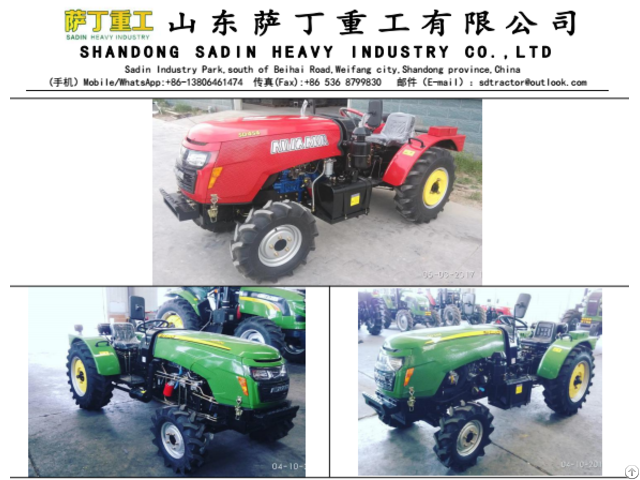

Sadin Sd404 Sd504 Garden Tractor - China

Sd404-sd504 garden tractor: 40hp-50hp, 4wd, four cylinder engine, 8f+2r shifts, power steering, single stage clutch, double speed pto: 540/1000rpm, aumahr hood, tyre: 6.00-16/9.5-16, luxury seat, big fuel tank.

muffler down.

model sd404 garden tractor sd504 garden tractor

type 4wd

overall dimension(mm) length 3000 width 1230 height 1210

tread(mm) front wheel 960(1100, 1200, 1300) rear wheel 960-1300

wheel base(mm) 1650

ground clearance(mm) 230

structure mass(kg) 1470

front wheel ballast(kg) 48

rear wheel ballast(kg) 50

engine type vertical, water cooled, four cylinder, four stork rated rev.

(r/min) 2300 rated power (kw) 29.4 36.8

clutch dry-friction, single- stage

transmission system gearbox 8f+2r shifts central transmission gear sector

tractor brake dry brake, discs

tyre front wheel 6.00-16 rear wheel 9.50-16/9.5-24

pto shaft rev.

720r/min or 540/720
