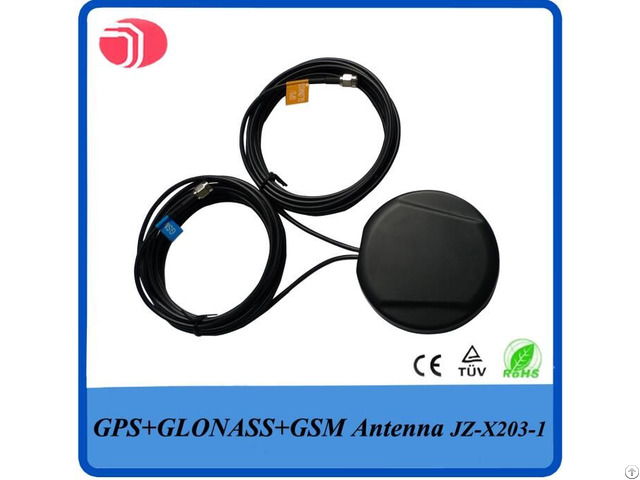

Free Samples Offer Gps Glonass Gsm Antenna - China

price: 4.60 Dollar US$

1) Dielectric Antenna
GPS Frequency 1575.42 MHz±3 MHz
GLONASS Frequency 1602-1610MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impedance 50 ohm
Polarization Type R.H.C.P
2) LNA/Filter
LNA Gain(w/o cable) 28±2 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mA
3) GSM Antenna
Frequency 824-894/1710-1990MHz
880-960/1710-1990MHz
1920-2170MHz
Gain 2 dBi


Company Contact:


  • Phone: 86-573-82230666

  • Address: NO.18 Huiyuan Road, Japanese Investment Zone, Youchegang, Jiaxing ,Zhejiang, Jiaxing, Zhejiang, China

  • Email: Email


Published date: August 11, 2016 -

  • Business Description: We are a GPS,GSM,WIFI antenna manufacturer in China.

    Free samples offer you for test after confirm the cable and connector.
