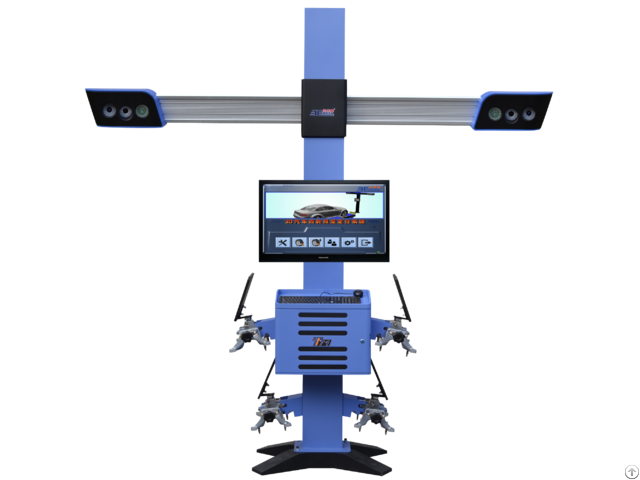

Wheel Aligner T71 - China

Product Functions & Features:

With tablet.

Customer feedback reminder timely reminds workshop to follow up with car situation and maintain old customer.

Black box records the operation situation of wheel aligner, effectively improve the efficiency of problem-solution.

Measurement accuracy up to 0.01.

Golden Eye Function.

VAG super low chassis measurement.

3D animation demonstration make it easier to learn.

Additional measurement can realize angle analysis for chassis.

Voice remind function.

Wireless remote control.

Large LCD display.

Standard Configuration:

BeamX1, ColumnX1, TargetX4, Brand PCX1, Brake DepressorX1, TurntableX1, 32” LCD DisplayX1, Adjustment shimX5, 24” Wheel ClampX4, Steering Wheel HolderX1, Wedge BlockX1, PrinterX1, Instruction ManualX1, Wheel Clamp FastenerX4, Adjustment ScrewX2.

3D Product Advantage:

Technique Advantage: Intellectual property rights, upgraded product with sustainability.

Hardware Advantage: Four cameras with 5 mega-pixel.

Chessboard target design.

(Exclusive Patent)

Measurement Advantage:

Dynamic graphics shows variation value of every angle.

Without looking at screen in the process of measurement.

Operation can be finished by intelligent LED indication light.

Rub radius measure the steering wheel holder whether symmetrical or not, then to keep stability.

Dynamic Display

Intelligent Module Switching

Free Vehicle-pushing

Measurement Range & Precision:

Measurement Items

Measurement Precision

Measurement Accuracy

Camber

±0.01°

±8°

Caster Angle

±0.03°

±19°

Front Wheel K.P.I.

±0.02°

±19°

Toe

±0.01°

±2°

Rear Wheel Thrust Angle

±0.02°

±2°

Rear Wheel Shaft Deflection

±0.02°

±2°

Wheelbase Difference

±0.02°

±2°

Front Setback

±0.02°

±2°

Rear Setback

±0.02°

±2°

Wheelbase

±0.25cm

<265cm

Tread

±0.25cm

<533cm
