Kraft Pleated Panel Filter - China

price: contact company for price


kraft pleated panel filter

synthetic fibre which has the advantage of the large dust holding capacity, the low pressure loss .


* Suitable for high humidity conditions

* Replaceable filter media

* Progressively built- up thermal bonded polyester fibre

Application: Prefiltration of dust and dirt on air handling units.

Type: Nonwoven Media, pleated with a wire support grid.

Frame: Mill- finished aluminium header.

Media: Polyester fibre.

EN 779: 2002 filter class: G3. G4.

ASHRAE 52.2: 2007 filter class: MERV 6. MERV 7.

Recommended final pressure drop: 250 Pa

Temperature: 80. C- 100. C in continous service.

Fire rating: DIN 53438 class F1

Place of Origin: Guangdong, China ( Mainland)

Brand Name: longwell

Model Number: PF

Dimension( L* W* H) : 24* 24* 2'

Weight: 3kg

Certification: ISO CE

FOB Price: US $ 2 - 2.5 / Piece

Port: huangpu

Minimum Order Quantity: 1000 Piece/ Pieces

Supply Ability: 1000 Piece/ Pieces per Week

Payment Terms: L/ C, T/ T

Company Contact:

  • Phone: 8602034984122

  • Address: No.8, ShangNi Village YuShan Industry Zoone LanHe , GuangZhou, China

  • Email: Email

Published date: April 9, 2014 -

  • Business Description: Guangzhou Longwell Air Filtech Co.,Ltd. is an leader air filters manufacturer providing quality products to all of it's customers.

    Bringing rich experience and technology of the air filtration industry, our highly trained personnel provide expert recommendations on painting spray booth , HVAC, industrial ventilation, and air purification systems with a unique ability to satisfy customers with their needs.

    Our main products are roll filter media and finished air filters. They are the best sellers in domestic market and widely accepted by the overseas market.

    We hold patents for innovative new filtration products and have a policy of continuous research for product improvement. We use only top quality materials in manufacturing filters, housings, and complete systems.

    With the veteran worker and precise quality control carried out for every order, we give OEM service to help our customer with great competitiveness by producing top quality with Chinese cost level.

    We are looking forward to corporations worldwide. Wherever position your may at today, we would like to take this opportunity and assist you to promote your business further.

Related listings

  • Sinotruk Howo Light Truck Zz5047ccyb2813c1y45 Type
    Sinotruk Howo Light Truck Zz5047ccyb2813c1y45 Type
    Automobile - Filters - Air - Jinan Minghui Auto Parts Co., Ltd - China - February 19, 2014 - contact company for price

    Weight Parameter Complete Vehicle Kerb Mass(kg) 2370 Maximum authorized total mass (kg) 4495 Maximum authorized towed total mass(kg) Dimension Parameter External Dimensions(mm) Length 5150 Width 1910, 2000 Height 2450 whee...

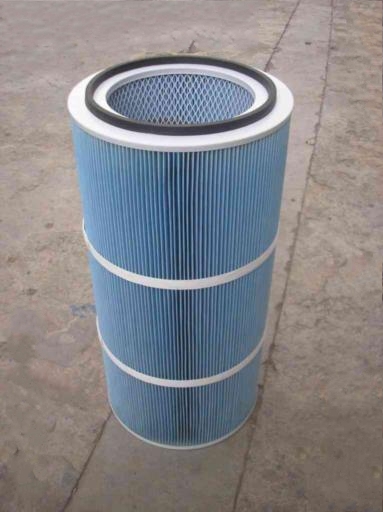

  • Zhong Ye Air Filter P777868
    Zhong Ye Air Filter P777868
    Automobile - Filters - Air - Gu'an County Zhongye Filtering& Purifying equipmen - China - August 27, 2013 - contact company for price

    Industrial production should pay particular attention to the treatment of dust. industrial dust filter is an efficient tool to solve the dust in air. Industrial dust filter can filter the compressed air in the dust, dust filter, high efficiency, Mate...

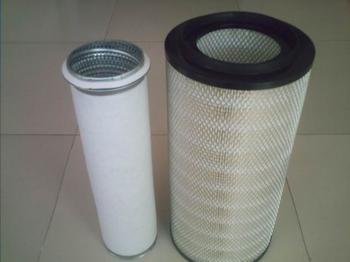

  • Ait Purification In China
