  • Pipe Based Well Screen Double Layer Tube - China

    price: 35.00 Dollar US$

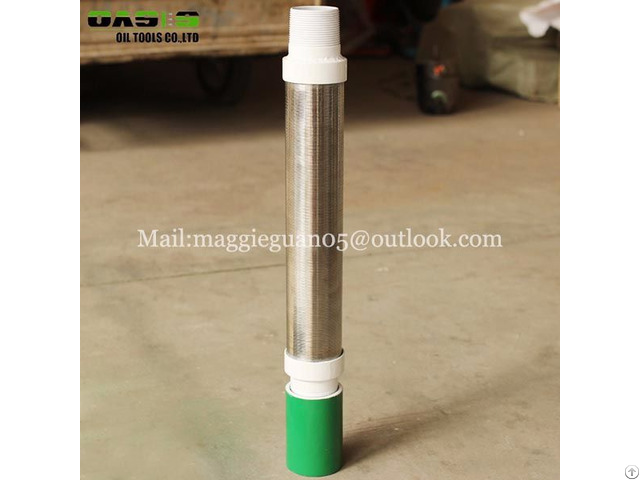

    Pipe based well screen

    1 - Material: stainless steel 300series, 304, 304l,, 316, 316l; Carbon steel K55 J55 N80 etc.

    2 - Thickness: 3-12mm

    3 - Out Diameter: 73-610mm

    4 - Slot size: 0.1-6.0mm

    5 - Wire diameter: 1.5*2-3.5*6.8mm 6 - Length: up to 6m

    7 - Filter Rating: >95%

    8 - Width: unequal

    9 - End connection: thread/plain/f lang

    10 - Certification: ISO/C E

    11 - Surface treatment: galvanzied or coating

    12 - Advantage: from direct factory supply

    The pipe base screen are used for deep water well application and oil field application

    It is used for sand control in wells with high pressure and high traction value due to the depths.

    Having the API casing inside a wire wrap screen jacket is supporting the screen and enhance the cabapitities and high tensil strength Loads.

    Pipe base can be made from API pipe Seamless casing spiral or stainless steel casing

    Opening area for the base pipe is up to 15% and for the jacket is up to 40%.

    Jacket slot size between 0.15mm to 15mm

    Fature of pipe base screen

    1 - Every Wire and Rod intersection is welded with consistent weld integrity

    2 - Tight slot control for improved sand retention

    3 - Rigorous Quality Control Inspection

    4 - NACE Compliant for corrosion resistance

    5 - Recessed Weld Rings for run-in damage protection

    6 - Alternate profile wire options for increased flow area and heavy duty applications (HRWP and Frac Pack).

    7 - Options for end and mid joint centeralisers (Spiroliser type or blade)

    8 - Options for Base Pipe Perforation open area.

    9 - Different Metallurgy of Base Pipe available.

    Application:

    Heavy oil, sand oil, SAGD, CBM, bitumen.

    Water injection.

    Horizontal, vertical, deviated oil and gas, water wells.

    Stand-alone operations, cased hole, open hole environments and horizontal completions.


    Company Contact:


    • Phone: +8615737341712

    • Address: Fengquan Industrial PARK, Xinxiang , Henan , China

    • Email: Email


    Published date: June 12, 2018

    • Business Description: Oasis Oil Tools Co., Ltd is Located in the industrial park of high-tech enterprises in Xinxiang City, Xinxiang Oasis Oil Tools Co., Ltd. covers more than 20000 square meters with total RMB 15 million.

      Our company now has more than 150 staffs, 6 of them are senior engineer.

      Since founded we are always adhering to the "development on innovation, development on efficiency and treat customers with honesty" business philosophy.

      After many years' efforts, now we have developed into a famous manufacturer which integrates the research and development, design, manufacture and sell well.

      With imported fully automated computer numerical control equipment, Germany technology and advanced inspection methods, we have developed more than 20 kinds of filtering products, the appearance and accuracy of which have a leading level at home and abroad.

      Our main products include the stainless steel/carbon steel/duplex stainless steel water well screens/Johnson well screens, pipe based well screens, perforated pipes, slotted pipes, bridge slotted well screens, sand control well screens, gravel pre-packed well screens, industrial filters, screen plates, passive water intake screens, water caps, resin trappers.

      Besides, the surface of our well screens can be galvanized and powder coated.

      The pipe products have stainless steel pipe, carbon steel pipe, API/ISO oil well casing and related parts.

      Our well screens are widely applied to water well, oil well and gas well to control sand, filtering, paper making and chemical industry.

      We have the right to export well screens independently.

      Our water well screens have been exported to Russia, Sudan, Tunisia, Morocco, Saudi Arabia, Slovenia, Indonesia, Philippines, Vietnam, Canada, Bolivia, Ecuador, Columbia etc.

      we have received good feedback from customer at home and abroad.

      We will still adhere to "A good screen makes a good well", "services to customers, satisfied with customers" etc.

      business philosophy to get mutual development.
