IG-002Reinforced graphite composite sheet

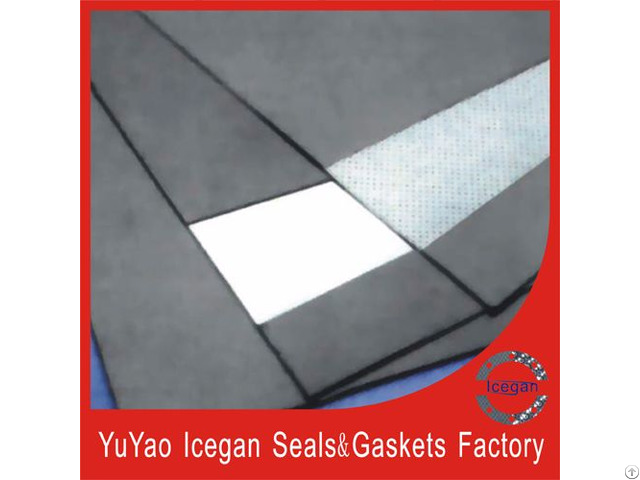

Graphite reinforced composite sheet for the graphite plate and punching tin after rolling composite forming, basic structure is: graphite plate + blunt tooth tin + graphite plate.

Graphite reinforced composite sheet with super seal effect, high temperature resistance, corrosion resistance, long service life and environmental protection, etc.

Mainly used in the manufacture of all kinds of sealing gaskets, such as automobile engine with cylinder pad, chemical pipe with flange gasket sealing gasket and a variety of mechanical joints.

At the same time has good lubricity, non-stick cylinder, easy to repair replacement characteristics.

Quick Details

Place of Origin: Ningbo, China (Mainland)

Brand Name: ICEGAN

Model Number: IG-002

Material: graphite with inside metal, graphite and Metal

Shape: Flat Gasket

Standard or Nonstandard: Standard

Type: graphite Gasket Sheet The performance parameters

Density: 1.3 to 1.5 g/cm after

Compression ratio: 5% 15%

Resilient rate: 40% or higher

Temperature: - 240-650 ℃

Transverse tensile strength: 30 mpa or greater

Thickening of oil absorption rate: 15% or less (temperature 150 ℃, keep 5 hours) in ASTM 3 oil

Thickening of oil absorption rate: 15% or less (temperature of 21 ℃ ~ 30 ℃, keep 5 hours) in ASTM B kind of fuel

Thickening of oil absorption rate: 15% or less (temperature of 21 ℃ ~ 30 ℃, in ethylene glycol: water (1: 1), maintain 5 hours)

Regular size:

500 * 500 mm, 500 * 1000 mm, 500 * 1200 mm, 1000 * 1000 mm, 1000 * 1200 mm, 1000 * 1500 mm

Thickness:

1.0 mm and 1.2 mm, 1.5 mm, 1.8 mm, 2.0 mm, 2.5 mm and 3.0 mm

Other size can produce according to customer's need

Packaging & Delivery

Packaging Details: 1000-1500 KGS per wooden pallet, or 50 KGS per wooden case, or your requirements.

Delivery Detail: 15-30 days after received your deposit
