Road Parking Barrier Gate - China

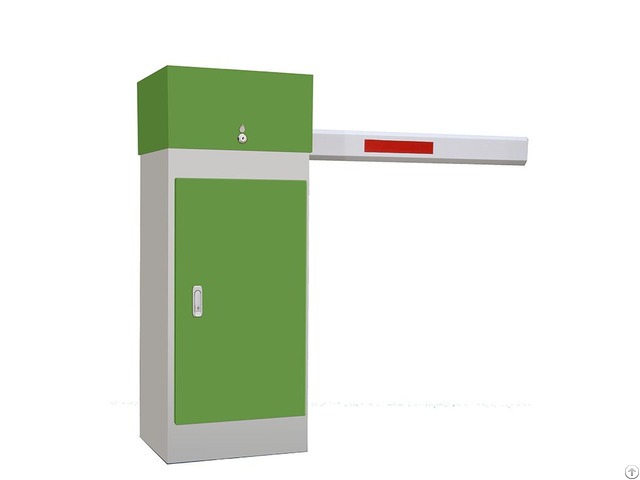

Road parking barrier gate

high quality road barrier supplier, automatic parking barrier

PRODUCT DESCRIPTION

Barrier Gate is very effective in controlling access to the parking lot by using a remote control with a high level chip for parking security.

It has functions like manual control, remote control, anti-blow, suitable for access control of residential area, enterprises and institutions, commercial parking lots, toll gates, etc.

In addition to being compatible with most automated equipment.

Features

The humanized clutch device: In case of power off, unlock the clutch device and raise the boom manually.

By the time the power is supplied, lock the clutch device to make it working normal again.

Special spring device: Both the compression spring and tension spring can be used in the machine.

Using the compression spring can avoid accidents caused by the tension spring.

Three control buttons: for boom raising, falling and pausing.

Boom backtrack function: the boom will rise if it hits something when falling

Both external and internal loop detectors are supported

'Open', 'Close' and 'Stop' controlling interfaces

Remote control and wire control for selection

Infrared photocell design: for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed (Optional)

Traffic light signal connection port: red light for stop; green light for pass (Optional)

RS485 communication serial interface (Optional)

The casing uses advanced waterproof structure and anti-aging outer covering

Provide straight arm, folding arm and fencing arm Technical Parameters

Model: Barrier Gate DZ2

Power source: AC220V 50Hz/ AC110V 60Hz

Consumption: 150W

Speed: 1, 1.8, 3, 6 seconds (optional)

Working temperature: -20℃ to +75℃

Arm length: 3 to 6 meters (optional)

Working humidity: 5％ to 95％

Size: 390*340*1020MM(L*W*H).
