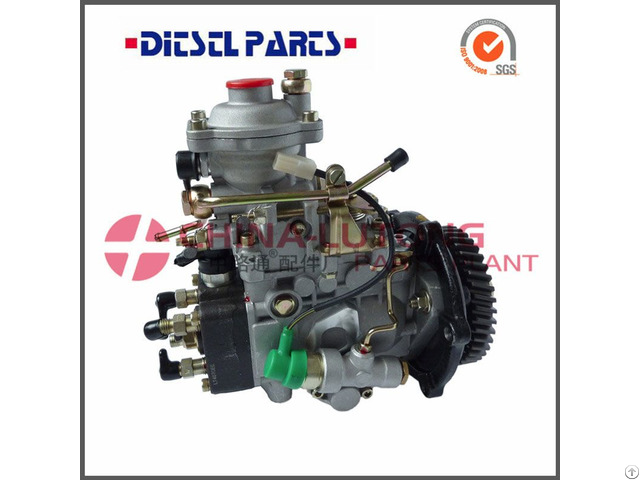

Fuel Injection Pump For Engine Jmc Jac 4jb1 Oem Ads Ve4 12f1900l005 - Chinaprice: 300.00 Dollar US$
Also launched VE pumps for years, about VE pumps:
The purpose of the fuel injection pump is to deliver an exact metered amount of fuel, under high pressure, at the right time to the injector. The injector, unlike in a gasoline engine, injects the fuel directly into the cylinder or a prechamber connected to the cylinder.
The VE in the name of the Bosch pump used in the VW diesels and many other small diesel engines stands for "Verteiler", which is German for distributor or divider. The other common kind of injection pump is the inline pump. The difference between them is that the "Verteiler" VE pump has one fuel metering plunger, and a mechanism (the "Verteiler"/distributor) to send the fuel to the right cylider. The inline pump has one plunger for each cylinder.
Some other functions of the fuel injection pump are:
Timing-- The timing is adjusted in response to engine RPM. At higher RPM s, the fuel pressure from the vane transfer pump is higher. Pressure changes effects a spring loaded plunger, and the resulting movement will move the cam rollers to either advance or retard the timing. There is also a cold start device which advances the idle timing manually.
Governor-- A mechanical governor limits the maximum speed of the engine to 4800 rpm in the bus/vanagon application and 5350 rpm in newer passenger cars. It can be seen just above the cam disk in the middle figure.
Stop-- A magnet valve or solenoid (shown in the figures) opens and shuts off the fuel channel between the feed pump and the metering pump.
Aneroid-- An air inlet pressure sensor is used to determine maximum amount of fuel delivered on injection pumps for turbo engines. On newer ('89 and later) naturally aspirated engines a similar arrangement is used for altitude compensation. Now the items for our VE pumps as following:
Any comments, please contact with me tina at China-lutong. Net
Item OEM LUTONG # LUTONG # Engine
1 NJ-VE4/11F1900LNJ03 ADS-VE4/11F1900L003 2000110003 JX493Q1
2 NJ-VE4/11F1250L009 ADS-VE4/11F1250L004 2000110004 JX493Q1/PD2009
3 NJ-VE4/12F1900LNJ01 ADS-VE4/12F1900L005 2000110005 4JB1
4 WF-VE4/11F1900L002 ADS-VE4/11F1900L006 2000220006 HFC 4DA1-1
5 NJ-VE4/11F1900L005 0001060005-Z ADS-VE4/11F1900L008 2000220008 JX493ZQ4A-47
6 NJ-VE4/11F1900L064 0001060064 ADS-VE4/11F1900L010 2000220010 JX493ZQ4A-53
7 104641-7280 NP-VE4/11F1800LNP2495 ADS-VE4/11F1800L012 104641-7280 JX493ZQ
8 104641-7172 NP-VE4/11F1800LNP2371 ADS-VE4/11F1800L013 104641-7172 JX493ZQ
9 00.02.06.0019 NJ-VE4/11E1800L019 ADS-VE4/11E1800L016 2000330016 JX493ZLQ3A
10 00.02.06.0025 NJ-VE4/11E1800L025 ADS-VE4/11E1800L017 2000330017 JX493ZQ5C
11 NJ-VE4/12E1650R005 ADS-VE4/12E1650R018 2000330018 4D20(486)
12 NJ-VE4/11E1800L013 ADS-VE4/11E1800L019 2000330019 4JB1T1(493)
13 NJ-VE4/11E1600R015 ADS-VE4/11E1600R020 2000330020 488
14 NJ-VE4/11E1800L047 ADS-VE4/11E1800L022 2000330022 493\4DA1-1B
15 NJ-VE4/11E1800L008 ADS-VE4/11E1800L023 2000330023 suzl 100P
16 NJ-VE4/11E1800L024 ADS-VE4/11E1800L024 2000330024 suzl
- Posted By: china lutong
- Phone: 18965880739
- Address: Fujian Province Putian City Hanjiang District Guoxing Town are industrial area 67 #, Putian City, Fujian Province, China
- Website: http://www.china-lutong.com
Published date: April 14, 2017 -
- Business Description: China Lutong Parts Plant, is a professional OEM & aftermarket parts supplier which specialized in high quality diesel fuel injection parts & locomotive diesel engine parts with a long history, Our main products include Head Rotor(VE Head Rotor,Perkins Head Rotor),Diesel Nozzle,Diesel Plunger,Diesel Elements,Diesel Injectors,Delivery Valve,Cam Disk,Drive Shaft,Repair Kits,Feed Pump,Roller Ring,VE Pump Parts,Nozzle Tester,Test Bench,Common Rail Injector,Common Rail Nozzle,Common Rail Injector Control Valve.and so on.
