Automatic Mechanical Stirring Borosilicate Glass Bioreactor 5 14 - China

price: contact company for price

Nominal volume

3L, 5L, 10L

Tank configuration

Special heat resistant and pressure withstanding borosilicate glass tank, the upper cover made of 316L stainless steel.

Stirring system

Top mechanical stirring system , aseptic mechanical seal system;

DC stirring motor, easy assembly and disassembly, convenient SIP;

2-layer flat vane, oblique vane, bending vane(low shear stress) and axial flow vane are optional.

Stepless speed control, digital setting of rotation speed control.

Structure mode

Desktop fermentor, compact structure and convenient operation.

Ventilating system

Equipped with stainless steel circular spreader;

Rotor flowmeter display, pressure display, manual valve flow adjustment;

Equipped with high-efficiency bacteria removing filter with a precision of 0.01μm;

External no oil compressed air is required, for continuous and stable air supply.

Temperature control

Online inspection, digital setting, automatic control;

Pt-100 temperature probe and digital temperature meter;

Built-in electric heating device and external coolingwater for automatic temperature control.

pH control

Online inspection, peristaltic pump automatic incremental feeding of acid or alkali solution for adjustment;

Imported Switzerland pH electrode realizes hightemperature steam disinfection.

Dissolved oxygen(DO)

Online inspection, with a rage of 0-100% or0-180%;

Imported Switzerland DO electrode realizes high temperature steam disinfection;

Feeding control

peristaltic pump time proportional incremental feeding, with the volume of incremental feeding being displayed and recorded.

Defoaming mode

Foam electrode, automatic alarming in case of abnormal foam situation;

Peristaltic pump automatic/manual incremental feeding of defoaming agent, with the volume of incremental feeding being displayed and recorded.

Control system

Application PLC control system, Siemens PLC controller, color touch screen operation interface with complete functions and stable running.

Equipment features

SIP, protecting cover, good safety and reliablility;

Special mechanical seal with reliable sealing;

Strong stirrig power and clear observation;

Easy assembly and disassembly, convenient use.

Optional

1. Multi-way feeding

2. weighing of fed materials

3. ORP online inspection

4. Tail gas O2, CO2 content online inspection

5. Methanol(alcohol)content online inspection

The institute is a high-tech enterprise in researching developing and producting auto-control bioreactor (fermenter), auto-control reaction kettle and microalgae production equipment,which is also the earliest professional institute in China and awarded the title of high-tech enterprise of Shandong Province.The institute owns solid technical force and equipment manufacturing base. The development of the microalgae and the large algae depends on School of Life Sciences of Ocean University of China and Yantai University.

GBR series auto-control bioreactor has been already appraised by the experts of Shandong Science and Technology Commission. After that,it uses the new technology increasingly and strives for the development. Now it has already formed the GRB series entire automatic control,half automatic control bioreactor and the light bioreactor volume production. The product has sold to the nation and exported to Asian and the Mideast.

Contact: Cao director(Engineering)

TEl:86-0535-6714995 15318650506

FAX:86-0535-3452749

Email:yt.haiyang@163.com

Website:www.ythysw.cn

www.mbioeng.com/


Company Contact:


  • Phone: 05356714995

  • Address: yantai,China, yantai, China

  • Email: Email


Published date: May 14, 2013 -

  • Business Description: involved in international trade import export of goods, products, and services

Related listings

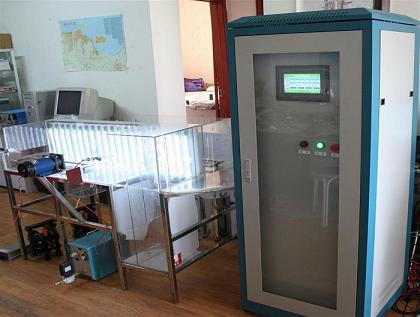

  • The Air Lift Optical Bioreactor 5 14
