Kzx 320 Intermittent Offset Label Printing Machine Ps Plate - China

price: contact company for price

Product Description

KZX-320 Intermittent Offset Label Printing Machine (with PS plate)


1.KZX-320 intermittent offset label printing machine adopts exact servo control system which can ensure the stabilization when the printing material in the printing process. It can free from the printing roller change.

2.Printing unit: Assembled with 19 pieces of ink rollers , 4pcs of Form Rollers and 4pces of water rollers (alchohol dampening system), has nice ink working system to avoid

Streak trouble and Ghost image efficiently, largely increase the printing quality. The definition and precision made would never be reached by Flexo press.

3.Shaftless transmission system: every printing unit transmitted by an independent servo motor, 15 sets of servo motors in total for whole machine (6color) to ensure the exact color registering precision during high speed operation.

4.Positioning system: The only work is to input the printing length on the main control panel, every unit will be motioned to the right position automatically. Largely saves time and materials when adjust the color register.

5.Color registering system: the vertical and horizontal motions of every printing unit are all controlled by independent motor (ease the laboring and reduce the waste). By video still system, the machine can regulate vertical & horizontal Registering without stopping, it improves the printing quality and increases the producing capacity.

6.Super Large printing area: 300X350, the maximum printing length could be reached at 350mm and the running maximumspeed is 63m/min. By high-precision photocells, the machine ensures multi-register print on both side, make the possibility of label pattern variety.

7.Every printing unit equips with clutch device to be stopped independently by lifting away when needed. This system extends the machine using life.

8.Multi options: flexo UV varnishing unit (both solid and spot) and rotary die-cutting unit can be the option for this machine.Only one big magnetic die-cutting cylinder used in this machine, largely saves the tooling cost. Different die-cutting job can be achieved only by changing the flexible die.

9.Touch LCD screen, faster CPU, independent touch screen 12inch operating display, in each

printing unit, powerful human-computer dialogue system, multi-guide inspecting display interface,

instant alarm signal, makes operation much easier and more efficient.

10.PS plate Intermittent printing adopted, hits the high-level demands whatever high, mid or low capacity printing task, and it is an ideal choice for print firms to produce the high-grade adhesive labels.

http://www.kingsunmach inery.com/

Company Contact:

  • Phone: 8657788939966

  • Address: No.1002, Heyuan Mansion, Xincheng, Wenzhou City, Z, Wenzhou, China

  • Email: Email

Published date: January 25, 2014 -

  • Business Description: Wenzhou Kingsun Machinery Industrial Co., ltd is a leading supplier and

    manufacturer of printing and packaging machines & materials in China. At

    Kingsun, we understand that the reputation of printing or packaging

    companies like yours lies in the hands of the equipment you use and good

    service, so we strive to be the leader supplier in printing and

    packaging industry rather than being just one more competitor. So that,

    we only supply good quality products to satisfy our customers needs.

    We are able to provide a wide range of equipment and service of printing and packaging, including post press equipment such as automatic die cutting machine, hot stamping machine, folder gluer, paper guillotine, slitter rewinder, thermal laminator, flute laminator, paper sheeter, hard cover making machine, and label making machine such as flexo printing machine, label die cutting machine, and flexible packaging equipment such as rotogravure printing machine, dry laminating machine, plastic bag making machine, packing machine etc, our factories have 10 20 years of manufacturing experience so we can provide high quality, reasonable priced products. Now our printing and packaging machines are well accepted by customers from more than 65 countries.

    Kingsun company has 10 more years of experience in exporting a variety of printing and packaging machinery and materials, our work teams are all university graduated and constantly with professional training, so we fully understand how to provide high quality products and good services to our global customers. We continuously improve our organizational management, adopt the most advanced technologies and software system, so we have been keeping the pace with the leading position in the industry.

    Especially, we pay high attention to quality control on each production process for our equipment, so as to ensure the highest quality level since from the very beginning. In order to realize this goal we only choose raw materials from well known and high quality suppliers. Many years we established stable relations with all raw material suppliers and buy in big quantity, so that we can get very good quality products and lower the cost. Most of our products are CE certified, or put into production according to CE regulation even higher requirement, so can keep higher machine quality than others. Most important is, all the machines were carefully tested before shipment and make details record, and offer at least one year warranty for our sold products

    Kingsun company has more than 15 manufacturing factories, each factory focus on one or a few kind of specific printing and packaging machines production, as a result, we have the ability to meet various needs for different buyers, this way can take advantage of the group and each one factory can play its own strengths.

    Our team accumulating so many years experience for this field is huge, we focus on this printing and packaging industries since 12 years ago and have established a specialized after sales service team and now machine design team, so that we can provide our buyers with better machines and services.

    We are looking forward to joining hands with you, with all partners, to create a brilliant future together!


Related listings

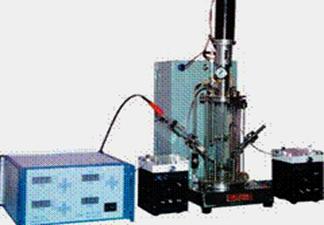

  • Auto Controlled Microalgae Phototroph Bioreactor12 12
