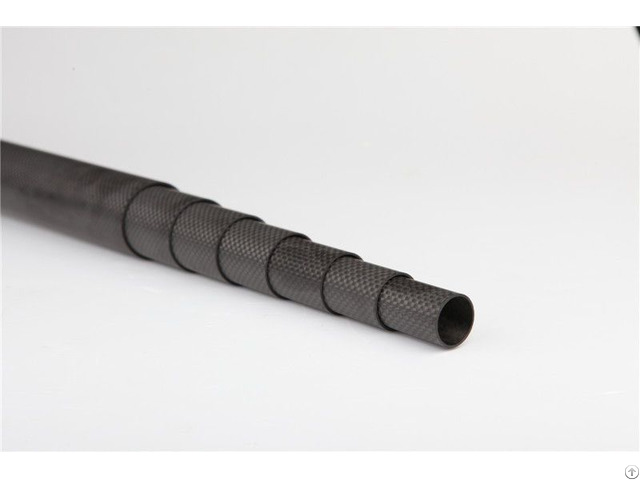

High Tensile Strength Telescoping Carbon Fiber Extended Pole Mast - China

High tensile strength telescoping carbon fiber Extended pole / mast Quick Detail: Excellent corrosion resistance

Excellent fatigue properties

Extremely high stiffness

High tensile strength

Excellent compression properties

Standard: ISO9001

All other different lengths are available as requested Description: These poles slide easily and could be locked at any length, which are ideal for any application where compact storage and long extension length are necessary.

These poles are easy to operate and carry.

They can be extended to maximum length in few minutes by pulling out and locking each telescoping section.

They are typically used in stiffness and coefficient of thermal expansion (CTE)-critical applications such as spacecraft, premium sporting goods and industrial rollers.

This is a 75ft telescoping pole, which is the longest we suggest as a portable thin handle design pole with high stiffness.

The pole could be make longer if you like.

* Warning: Carbon Fiber is an excellent electrical conductor.

Our poles could be made with fiberglass outer layer to add the insulation character.

Specifications: Extended length: 75FT

Collapsed length: 8FT

Weight: 3.5KG

Segments: 12

Base tube diameter: 70mm

Surface finish: 3K, matt black, any other as requested

Fiber Type: high modulus Carbon Fiber

Fiber Orientation: uni-directional

Matrix Type: Epoxy

Inner Diameter (ID) Tolerance: +/- 0.05mm

Outer Diameter (OD) Tolerance: +/- 0.05mm

Length Tolerance: +/- 0.1mm Carbon fiber tube Applications: Boarding and high-level access poles

Military and broadcasting antenna masts

Water fed pole system for window cleaning

Microphone booms Camera tripods, monopods, Telescoping Camera POLE Jib Arm

Retractable Handles for many tools

Telescopic prism poles/GPS pole/rover rod

Riggers includes center rigger and outrigger, Carbon Spinnaker and Whisker Poles

Many others Competitive Advantage: Engineer team with 15 years carbon fiber industry experience Factory with 12 years history High quality carbon fiber fabric from Japan/US/Korea Strict in-house quality checking, the third party quality checking also available if requested All the processes are strictly going according ISO 9001 Fast delivery, short lead time All carbon fiber tubes with 1 year warranty
