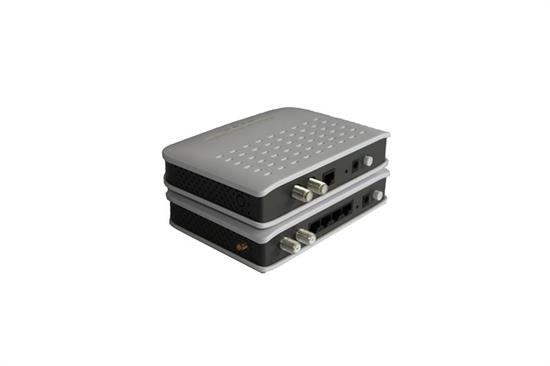

100mbps Iptv Network Video Wifi Eoc Slave Modem - China

price: contact company for price

Product Specification

Interface

1 10/ 100M autosensing Ethernet interfaces ( Auto MDI/ MDIX)

2 metric thread Cable interfaces

1 external power interface

Indicator Lan: 1

Cable: 2

Power: 1

Radio frequency

Frequency range: 7.5- - 30MHz/ 7.5- - 65MHZ Maximum output power: 15 dBm Receiving sensibility: - 65 dBm

Interface type: F type female connector socket

Output impedance: 75Ω

QoS

IEEE 802.3, IEEE 802.3x, IEEE 802.3u Auto MDI ( X)

IEEE802.1P, IEEE802.1Q

Protocol TDMA/ CSMA

Software attribute

Supports VLAN, QoS

Performance

Rate of Physical layer: 200Mbps

Throughput of MAC layer: 100Mbps

Modulation mode

OFDM 1024/ 256/ 64/ 16/ 8- QAM, QPSK, BPSK

Transmit distance >1000 m

Encryption mode 128- bit AES encrypted

Power External 12VDC/ 500mA

Size ( mm) 155 ( length) * 108 ( width) * 27 ( height)

Weight 340 g

Operation temperature 0~40 ℃

Stock temperature - 10~55 ℃

Operation humidity 20% ~85% non- condensation

Stock humidity 10% ~90% non- condensation

Power consumption < 7W


Company Contact:


  • Phone: 86013757160591

  • Address: 2F,C Building,HuahaoTai Industrial Park,Longhua, Shenzhen, China

  • Email: Email


Published date: May 4, 2016 -

  • Business Description: Shenzhen H-NET Technology CO. Ltd.( short for H-NET), is one of the leading manufacturers of IP Networking products in China.
    The company headquarter lies in Shenzhen and business offices are established in main cities all over the country. Now we have established two R&D centers in Shenzhen and Shanghai, with professional R&D engineer team to develop and improve our technology and products. Our current items cover EPON,GPON,SFP,Gigabit Ethernet Switches and Network Security Products.
