China Supplier Hua Net Technologies Company 10 100m Ethernet Over Coaxial Eoc Conver - China

price: contact company for price

roduct Overview

1 port Slave coaxial cable network unit is a HUA- NETAtheros 6400 / 7400 chip scheme EOC ( Ethernet over Coax) Slave which can be networking with Master coaxial cable terminal ( Master) . They can build Layer- 2 Ethernet transmit network through cable television coaxial cable and meanwhile have no influence on the pre- existing CATV signal transmit.

1 port Slave provides four 100M full- duplex Ethernet interfaces that can be simultaneously connected to terminals such as computer, set- top box of digital television, IP phone, etc. It supports QoS set up and can provide corresponding transmit guarantee of priority level for data stream of different service types. It supports bandwidth control. Maximum Uplink bandwidth of every 1 port Slave can be set up in order to prevent the attack to the whole coaxial transmit network when devices of other customer premises network go wrong or artificial attack happens. Encrypted transmit is also available to satisfy the service need of high reliability.

Product Features:

•Provides one 10/ 100M autosensing Ethernet interfaces to connect devices such as computer, set- top box, IP phone, etc.

•Provides 2 Cable interfaces to separately connect Uplink and Downlink Cable line

•Built- in CATV signal split filter

•Occupies Low Frequency Band . No influence on the pre- existing CATV signal

•No user profile needed. Plug and play

•Supports VLAN configuration

Product Specification

Interface

1 10/ 100M autosensing Ethernet interfaces ( Auto MDI/ MDIX)

2 metric thread Cable interfaces

1 external power interface

Indicator Lan: 1

Cable: 2

Power: 1

Radio frequency

Frequency range: 7.5- - 30MHz/ 7.5- - 65MHZ Maximum output power: 15 dBm Receiving sensibility: - 65 dBm

Interface type: F type female connector socket

Output impedance: 75Ω

QoS IEEE 802.3, IEEE 802.3x, IEEE 802.3u Auto MDI ( X)

IEEE802.1P, IEEE802.1Q

Protocol TDMA/ CSMA

Software attribute Supports VLAN, QoS

Performance Rate of Physical layer: 200Mbps

Throughput of MAC layer: 100Mbps

Modulation mode OFDM 1024/ 256/ 64/ 16/ 8- QAM, QPSK, BPSK

Transmit distance >1000 m

Encryption mode 128- bit AES encrypted

PowerExternal 12VDC/ 500mA

Size ( mm) 155 ( length) * 108 ( width) * 27 ( height)

Weight340 g

Operation temperature 0~40 ℃

Stock temperature - 10~55 ℃

Operation humidity 20% ~85% non- condensation

Stock humidity10% ~90% non- condensation

Power consumption < 7W


Company Contact:


  • Phone: 86013757160591

  • Address: 2F,C Building,HuahaoTai Industrial Park,Longhua, Shenzhen, China

  • Email: Email


Published date: April 19, 2016 -

  • Business Description: Shenzhen H-NET Technology CO. Ltd.( short for H-NET), is one of the leading manufacturers of IP Networking products in China.
    The company headquarter lies in Shenzhen and business offices are established in main cities all over the country. Now we have established two R&D centers in Shenzhen and Shanghai, with professional R&D engineer team to develop and improve our technology and products. Our current items cover EPON,GPON,SFP,Gigabit Ethernet Switches and Network Security Products.

Related listings



  • 16 Port Fiber Optic Media Converter Switch Ftth
    16 Port Fiber Optic Media Converter Switch Ftth
    Communications - Equipment - Shenzhen Hua-Net Technology Co.,Ltd - China - April 19, 2016 - contact company for price

    Overview The POE Switch is 8- port 10/ 100Mbps PoE switch with 8 port PoE. The PoE ports can automatically detect and supply power to IEEE802.3af/ at compliant Powered Devices ( PD) . The electrical power and data transmission on the same cable can e...

  • Power Over Coax Eoc Ethernet Modem Hzw E21 01
    Power Over Coax Eoc Ethernet Modem Hzw E21 01
    Communications - Equipment - Shenzhen Hua-Net Technology Co.,Ltd - China - April 18, 2016 - contact company for price

    We are authorized trader, supplier and exporter of Power Over Coax EOC Ethernet Modem HZW- E21- 01 in Shenzhen, Guangdong, China available with following details. Product Features: •Provides one 10/ 100M auto sensing Ethernet interfaces to connect ...

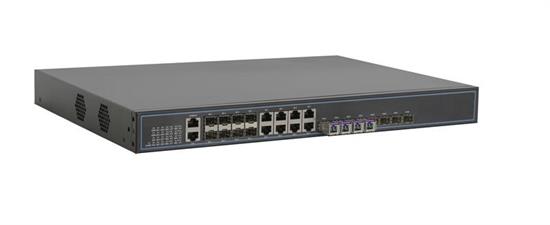

  • 1 U Ftth Olt Equipment Network Epon Gpon
