Glsun 2x2a Fiber Switch - China

price: 100.00 Dollar US$

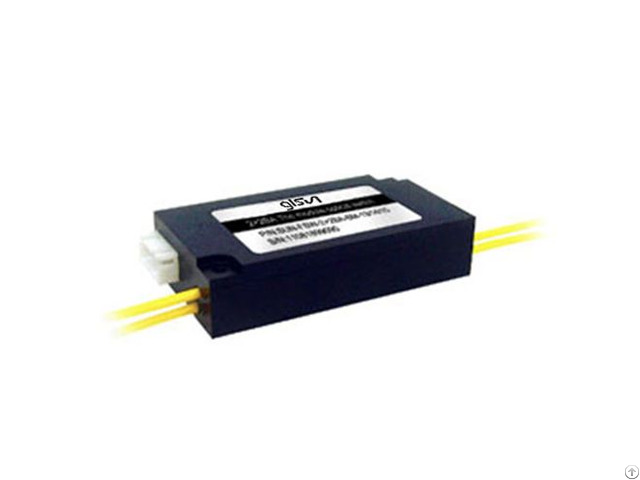

GLSUN SUN-FSW-2x2A Fiber Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)55.0x(W)26.0x(H)10.0mm. It is an ideal component for OADM, OXC, system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.

GLSUN 2x2A Fiber Switch - Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching

GLSUN 2x2A Optical Switch - Applications
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)

2×2A Fiber Optical Switch - Specifications
Model No: SUN-FSW-2×2A
Wavelength Range: 1260 ~ 1650nm
Test Wavelength:1310 / 1550nm
Insertion Loss 1, 2: Typ: 0.8 Max: 1.0
Return Loss ≥ 50 1, 2dB
Crosstalk 1 ≥ 60dB
PDL≤0.05dB
WDL≤0.25dB
Repeatability≤±0.02dB
Operating Voltage: 3V or 5V
Durability ≥ 10 Million Cycles
Switching Time ≤8ms
Optical Power ≤500mW
Operating Temperature: -20 ~ +70℃
Storage Temperature : -40 ~ +85℃
Relative Humidity: 5 ~ 95%
Weight : 25g
Dimension : (L)55.0x(W)26.0x(H)10.0 ±0.2
Note:
1 Within operating temperature and SOP.
2 Excluding Connectors.


Company Contact:


  • Phone: 18607731315

  • Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin, Guangxi, China

  • Email: Email


Published date: August 30, 2016 -

  • Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA,CWDM/DWDM components, Optical Modules and Custom Optical test systems.
