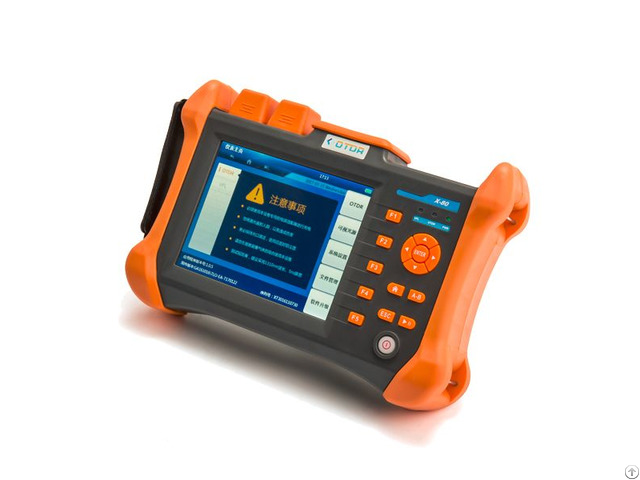

Palm Otdr X 80 - China

Specifications

Pulse Width (SM 1310/1550NM) 5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs :

(MM 850/1300NM) 5ns, 10ns, 20ns, 50ns, 100ns, 500ns, 1us

Distance Range (SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km, (MM 850/1300NM): 100m, 400m, 1.3km, 2.5km, 5km, 10km, 20km, 40km, 80km

Dynamic Range 30/28dB(SM), 32/30dB(SM), 19/21dB(MM)

Sampling Resolution Minimum 0.05m

Sampling Point 128, 000

Linearity ≤0.05dB/dB

Loss Threshold 0.01dB

Loss Resolution 0.001dB

Distance Resolution 0.01m

Distance Accuracy ±(1m+measuring distance×3×10 +sampling resolution)

Data Storage 20000 groups of curve

VFL 10mW, CW/2Hz

Interface 3 USB ports(Type A×2, Type B×1)

Display 5.6 inch TFT-LCD, Touching screen

Battery 7.4V/4.4Ah lithium battery, support 8 hours continuous working

Working conditions Working Temp：-10℃~+50℃；St orage Temp：-20℃~+70℃；Hu mitity ：≤95%(non-dew)

Dimensions/Weight 253×168×73.5mm / 1.5kg(include battery)

Packing list Straps; Adaptor; Lithium battery; FC connector; USD Cable; User Guide; CD; softbag; cleaning cotton

Functions

Automatic Measurement Mode: Operators do not need to choose the test distance and pulse width, the tester will automatically judge the length, and choose suitable dynamic range as well as pulse width to complete the work; The storage of event trace can be saves manually or automatically which will be convenient for data analysis

Multiple Wavelengths Measurement Mode: In order to use different wavelengths to execute the loss calculation in one fiber, we can choose duplex wavelengths test mode from parameter settings, the tester will switch wavelengths automatically

Multiple Trace Analysis: Simultaneous display 4 traces, operators can compare the traces and make analysis of any ones among the traces

Online Test: This will protect the test instruments and equipment

Duplex Operation Mode: Pure operation through touch screen ; or pure operation through the pressing keys

Data Analysis:

Save and generator standard trace file(.

Sor), more than 20000 groups storage capacity

Print the analysis report and traces which make the acceptance or work easily;
