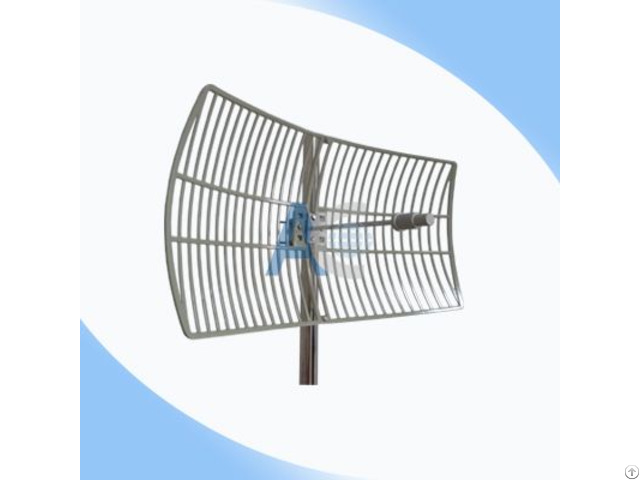

5ghz 27dbi Grid Outdoor Antenna - China

price: 23.08 Dollar US$

Electrical Frequency Range 5150-5850 MHz
Band width 700MHz
F/B Ratio ≥25 dB
Gain 27 dBi
V.S.W.R <1.5Type;Max 2.0
Radiation Direction
Horizontal Beam width 6°
Vertical Beam width 9°
Polarization Vertical or horizontal
Lightning Protection DC Grounded
Maximum Input Power 100W
Impedance 50Ώ
Connector N Female
Antenna Radome Material Aluminum Alloy
Mount way Pole
Diameter of Installation Pole Ø30~Ø50mm Mechanical Dimensions 400x600MM
Weight 2.4KG
Operating Temperature -40℃ to+70℃
Rated Wind Velocity 60m/s
RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: Wangchung Industrial Area, A, Foshan, Guangdong, China

  • Email: Email


Published date: June 28, 2017 -

  • Business Description: antenna manufacturer,wifi antenna,4g antenna,mimo antenna,3g antenna,gsm antenna,gps antenna,433mhz/315mhz antenna,pigtail cable and so on.
