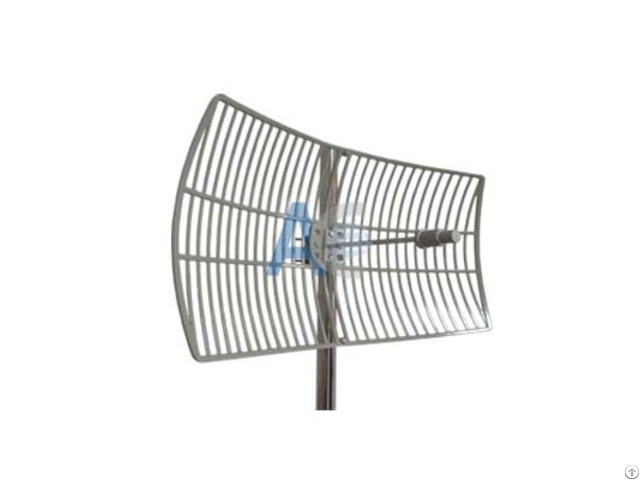

5ghz Wifi Outdoor Grid 30dbi Base Station Antenna - China

price: 30.00 Dollar US$

Electrical Frequency Range 5150-5850MHz
Band width 700MHz
F/B Ratio ≥25dB
Gain 30dBi
V.S.W.R ≤2.0
Radiation Direction
Horizontal Beam width 4°
Vertical Beam width 6°
Polarization Vertical or Horizontal
Lightning Protection DC Grounded
Maximum Input Power 100W
Impedance 50Ώ
Connector N Female
Antenna Radome Material Aluminum alloy
Mount way Pole
Diameter of Installation Pole Ø30~Ø50mm Mechanical Dimensions 600x900mm
Weight 3.5KG
Operating Temperature -40℃ to+70℃
Rated Wind Velocity 60m/s
RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: Wangchung Industrial Area, A, Foshan, Guangdong, China

  • Email: Email


Published date: October 19, 2017 -

  • Business Description: antenna manufacturer,wifi antenna,4g antenna,mimo antenna,3g antenna,gsm antenna,gps antenna,433mhz/315mhz antenna,pigtail cable and so on.
