2x2b Optical Switch For Ftth - China
price: 100.00 Dollar US$

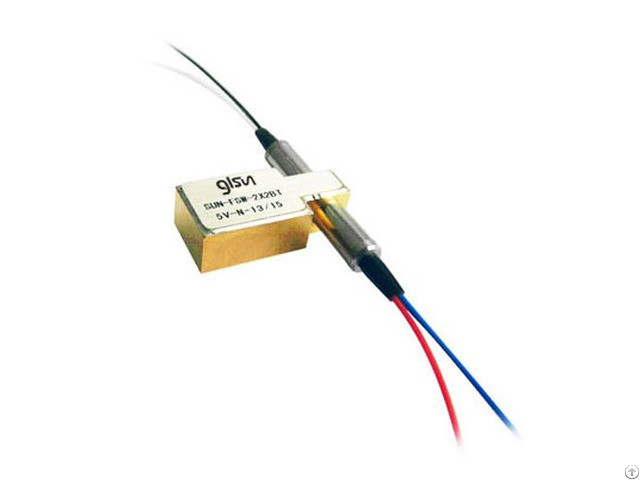

GLSUN SUN-FSW-2×2B Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2m m.
It is an ideal component for OADM, OXC, system monitoring and protection.
With compact package, it can be easy to integrate into a high density optical communication system.
GLSUN 2×2B Optical Switch - Features
·Low Insertion Loss
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
·Latching and Non-latching
GLSUN 2×2B Optical Switch - Applications
·R&D in Laboratory
·System Monitoring
·OADM
·MAN (Metropolitan Area Network)
2×2B Optical Switch - Specifications
Model No: SUN-FSW-2×2B
Wavelength Range: 850±40 / 1300±40;
1260 ~ 1650
Test Wavelength: 850 / 1300; 1310 / 1550
Insertion Loss 1, 2: Typ: 0.8 Max: 1.2; Typ: 0.6 Max: 0.8
Return Loss 1, 2: MM ≥ 30 SM ≥ 50
Crosstalk 1: MM ≥ 35 SM ≥ 55
PDL≤0.05dB
WDL≤0.25dB
Repeatability≤±0.02 dB
Operating Voltage: 3V or 5V
Durability ≥ 10 Million
Switching Time≤8ms
Optical Power≤500mW
Operating Temperature: -20 ~ +70℃
Storage Temperature: -40 ~ +85℃
Relative Humidity: 5 ~ 95%
Weight: 14g
Dimension: (L)27.0×(W) 12.6×(H)8.2 ±0.2
Note: 1 Within operating temperature and SOP.
2 Excluding Connectors.
Company Contact:
- Posted By: GLSUN SCIENCE AND TECH CO.,LTD.
- Phone: 18607731315
- Address: Guanglong S&T Zone, No. 8 High-tech Industry Park, Chaoyang Road, Guilin , Guangxi , China
- Email:
- Website: https://www.glsun.com
Published date: August 30, 2016
- Business Description: Product lines include Optical Switches, Free Space Isolator, MEMS VOA, CWDM/DWDM components, Optical Modules and Custom Optical test systems.
