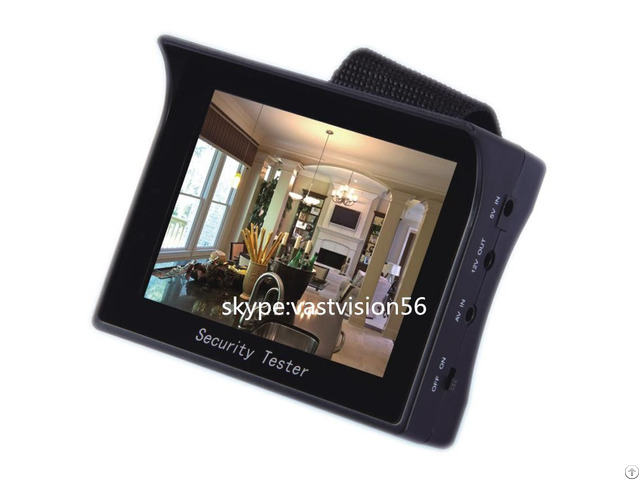

Inch 3.5 Handheld Video Performance Testing Security Cctv Tester - China

price: 35.00 Dollar US$

Specifications:

Display area: 3.5-inch TFT LCD active matrix
Material: ABS plastic
Resolution: 320 x 240 pixels
Input signal level: 1.0Vp-p, 75Ω
Back light type: LED
Brightness: 300cd/m²
Contrast ratio: 150:1
Viewing angle: (up/down/left/right): 40/60/60/60 degrees
System of signal: PAL/NTSC
Power requirement: 12V DC/50-60Hz
Power output: 12V DC
Power consumption: 1.5W
Actual visible screen size (H x V): 70.08 x 52.56mm
Operating temperatures: -10 to 60°C
Storage temperatures: -20 to 70°C
Rear connection: 3.5mm A/V in/out with cables
Power supply: 12V DC output jack
USB 5 pins DC in jack
Dimensions (L x W x H): 119 x 84 x 28mm
Packing size (L x W x H): 260 x 145 x 63mm
Net weight: 120kg
Gross weight: 0.86kg

Description:

LED backlight provides longer life, uses less power and provides better color saturation
Battery pack for field monitor use included
Ideal for trouble shooting system setup/fault location
Manual color adjustment
Low-power consumption
Battery pack provides 7 hours continuous operating when power out closed
Snap-on battery pack holds 4 pieces of AA NiMH rechargeable batteries (batteries included)
Manual controls for brightness, color, contrast and audio volume

Features:

Monitors for testing video performance, angle of view, and focus of security cameras during installation
With portable carrying wrist strap, rechargeable battery
Can be taken on installer's arm for easier video check


Company Contact:


  • Phone: 86-0755-28712802

  • Address: Bldg. 4, Lane A, Shangxue City,Science and Technology, Longgang District,, shenzhen, GuangDong , China

  • Email: Email


Published date: September 2, 2016 - Modified date: September 2, 2016

  • Business Description: Vast Vision Industry is a high-tech enterprise engaged in the R&D, production and marketing of LCD/LED monitors and modules. We emphasize small sizes ranging from 2.5 to 24 inches, and provide OEM/ODM services. As a leading company, we serve manufacturers in China and abroad sincerely and excellently.
    Our products are used in security monitoring, hospitals, supermarkets, banks, buses, cars, trucks, factory production lines, BGA stations and laboratories.

    We emphasize full size monitor/module/TV ranging from 3.5inch to 90inch, VGA/ DVI/ RCA/ BNC/ HDMI /USB,touch panel and non-touch are all optional. which are widely used as computer,pos display,industrial embedded into machine,CCTV monitor and etc.
