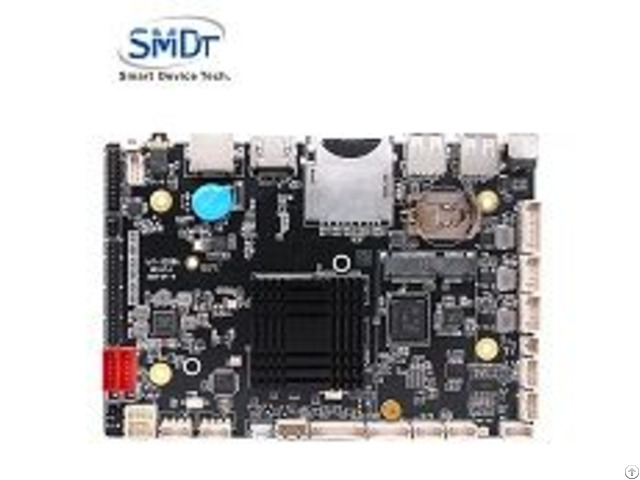

Industrial Ops Motherboard - China

Android Mainboard, Industrial ops Motherboard

Features 1 - High integration, Integrated LVDS/eDP/Ethernet/HDMI/WI FI/ Bluetooth in one, simplified machine design, remarkable.

2 - Built in PCI-E 3G module, support HUAWEI, LSAN and other PCI-E 3G/4G modules, support internet data and call.

Main Hardware Index

Board size 146*100mm

CPU RK3288, quad core, main frequency 1.8GHz, Android 5.1.1

Internal Memory /Storage Standard configuration 2G(4G optional)/ Standard configuration 8G(16/32/64G optional)

Built-in ROM 2KB EEP ROM(default without, optional)

HDMI output 1, Support 1080P@120Hz, 4kx2k@60Hz output

LVDS output 1 single/double channel, can drive 50/60Hz LCD panel directly

eDP output Can drive many kinds of resolution LCD panel with eDP interface

Video Format Support Support wmv, avi, flv, rm, rmvb, mpeg , ts, mp4 etc

Image Format Support Support BMP, JPEG, PNG, GIF

Amplifier Output Support left and right channels output, built-in dual 4R/20W, 8R/10W amplifier

Earphone Output Support one channel three/four band earphone plug in

USB2.0 Interface 2 USB HOST, 5USB Socket

Serial Port 4 serial port sockets(2 TTL+2 232), one channel is for Bluetooth reuse serial port

Ethernet 1, 10M/100M self-adapting Ethernet

WIFI, BT Built-in WIFI, BT4.0(standard configuration)

3G/4G Built-in PCI-E interface 3G/4G networks and voice calls

SD Card Support SD Card

RTC Real Time Clock Support

Timing Switch Support

System Upgrade Support local SD, USB upgrade
