Ekemp Er1000 Optical Mark Reader Data Detection With 1d 2d Barcode Scanner - China

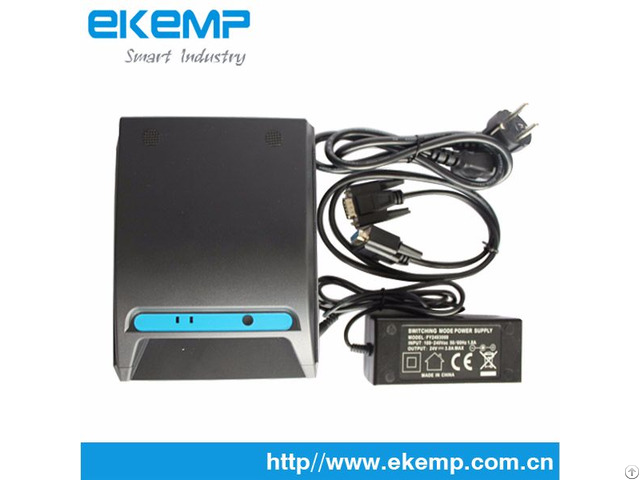

EKEMP ER1000 Optical Mark Reader Data Detection with 1D/2D barcode scanner

Brief Introduction:

Professional Optical Mark Reader (OMR) combining unique optical

characte ristics and micro-electronics processing technology, which adopts optical scanning to identify

the mark printed or written in a format and convert it into electrical signal acceptable to computer.

The model can provide technical support for secondary development to be extensively app lied by

secondary developer in combination with industry or project appliance for any industry or unit having

demand for fast data entry.

Key Features:

Small volume, light weight, stable and reliable performance, and fast processing speed.

Easy, convenient and highly-efficient, and available for multiple office sites anywhere and anytime.

Easy to learn, convenient to operate, and manual feeding.

The secondary development package provided.

Enables user to develop software system suitable to him.

Technical Parameter:

Name

EKEMP ER1000 MRZ OCR OMR Scanner Lottery Ticket Scanner with Printer

CPU: ADSP(400MHz), Embedded System

Image sensor: CCD( 1396 pixels), great depth of non- contact scanning, high

reliability and easy maintenance

Scan Pixels: 330×300dpi(H×V), 8-bit grayscale data.

Maximum scanning width: 82.5mm

High Speed: 200mm/s (300DPI)or 400mm/s (160DPI), bi- directional.

Thermal printing function: 200DPI print precision, support character, Chinese and image printing.

Interfaces supported: Rs232, USB2 - 0( optional)

Power supply: +24VDC±5%/2.5A


Operating Temp/Humidity: 0~50 ℃ / 10%~90%RH

Size: 170.0×126.0×100 mm (D x W xH)

Weight: around 0 - 87kg
