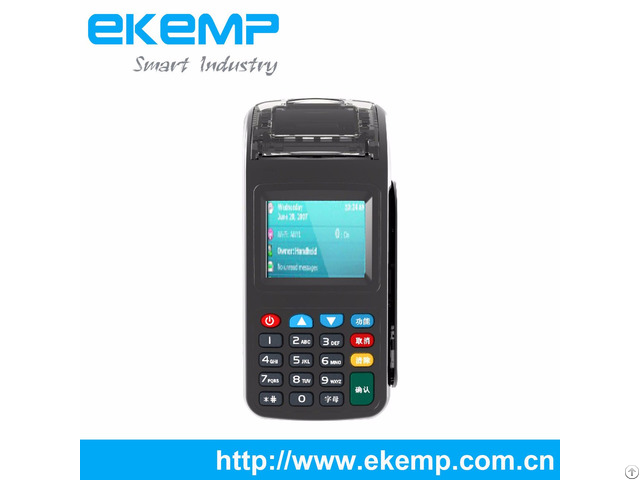

EKEMP YK600 POS Terminal Store Management Machine with Magnetic Stripe Card Reader

Brief introduction:

YK600 is a multifunctional POS terminal

1 - Equipped with 1D/2D Barcode Handheld Numeric

2 - Built-in 58mm Thermal Printer

3 - Billing Machine, RFID Credit Card Reader

4 - Safe and intelligent equipment

5 - Specially designed for Mobile Recharge and Billing Machine for Supermarket

6 - The design combines the screen with keyboard key, esure the convenient operation for customer.

7 - Many communication methods, real-time data transmission, such as GPRS, WiFi, Bluetooth.

Features:

1 - 32 bit secure CPU ARM Core processor .

2 - Multiple communication method, such as GPRS, WIFI 8, bluetooth .

3 - With 1D Barcode Handheld Numeric

4 - Mobile Recharge Machine with buit-in Printer

5 - Integrated with 58mm high speed thermal printer makes receipt printing easily.

6 - Built-in contactless card reader comply with 13.56MHZ, ISO14443 Type A/B, Mifare, NFC, etc.

Specification:

Memory

9 MB FLASH, 256KB SRAM

LED Display

2.4’ inch TFT, 320*240, LED high brightness back light, supports digital signatures

Keyboard

19 keys, 10 numeric keys/letter keys, 8 function keys, 1 ON/OFF button

Magnetic stripe card reader

Meet standard ISO7811, ISO7812, 1/2/3 tracks, supports bi-directional swiping

IC card reader

Support one IC card slot, meet ISO 7816, PBOC3.0, EMV standard

Contactless card reader

Supports 13.56MHZ, ISO14443 Type A/B, Mifare, NFC (optional)

SAM/SIM slot

One PSAM slot, meet standard ISO 7816, one SIM slot

Safety

Hardware Encryption, pay with ANSI X9.8/ISO9564, ANSI X9.8/ISO8731, 3DES, RSA, etc.

Thermal Printer

High speed and low noise thermal printer, paper width: 58MM, outside diameter: 30mm

Bar code Reader

Internal 1D bar code or 2D Barcode Reader ( optional)

Communication

GPRS wireless communication(standard), WIFI/Bluetooth (optional)

Peripheral Interface

One MIC USB(For charging), one MINI USB (For serial communication)

Power Adapter

Input : 100~240VAC, 50Hz/60Hz; Out put: 5.0VDC, 2A

Battery

Li-ion battery, 2600mah, 3.7V

Programming language

Standard C, supports secondary development

Dimension

178mm×82mm×59mm(leng th×width×height)

Weight: 300g

Work environment

Temperature 0℃~50℃ (32℉~122℉), relative humidity 10%~90% (Non - Condensing)

Storage environment

Temperature -20℃~60℃ (-4℉~140℉), relative humidity 5%~95% (Non - Condensing)

Application :

Instant Mobile Remittance: 1D Barcode Reader

Billing Machine For Supermarket

Prepaid Recharge for Gift card and Loyalty card

Small amount Money Transfer/E-Wallet/ E-voucher/E-topup

Travel & Ticket billing for Air Ticket/Railway/Subway/Tax i/Bus/Movie

Hotel/supermarket/retail/ Kiosk/restaurant/convenie nce store management
