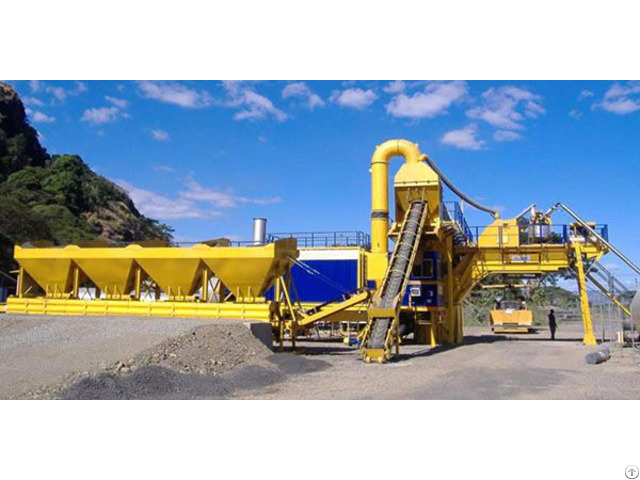

Cap80 Asphalt Drum Mixing Plant - China

price: 190000.00 Dollar US$

CAP80 asphalt drum mixing plant is a continuous mixing plant in which the aggregate heating, mixing and addition of bitumen and filler are done in the drum itself. The hot mix asphalt will be loaded continuously into a truck or conveyed to a storage silo with liner to prevent heat loss.

Model: CAP 80
Capacity: 80t/h
Drying & Mixing Drum: Φ1600X9000mm
Aggregate Bin: 4X6.5m3
Fuel Consumption: 6.5~7.5kg/t
Measurement Accuracy Hot aggregate: ±1%; Filler: ±0.5%
Aggregate Size ≤25mm
Aggregate Gravity ≥1600kg/m3
Aggregate Moisture ≤5%
Hot Aggregate Temperature: ≤160℃
Hot Asphalt Temperature: 130~165℃ (±5℃)
Air Emission: ≤100mg/Nm3
Working Noise: ≤70dB(A)
Operation: Full auto/manual
Installation Power: 175kw (380V-50Hz)
Voltage: 220V/380V-50Hz
Plant Covering Area: Length: 35m, width: 25m


Company Contact:


  • Phone: 008637153318624

  • Address: No. 6, Yinhai Road, Loosen Industry Zone, Nanyang, Henan, China

  • Email: Email


Published date: September 24, 2016 -

  • Business Description: Nanyang Liaoyuan Road Construction Machinery Co., Ltd is a professional manufacturer of asphalt mixing plants in China since 1992 and our main products are mobile asphalt plant, continuous asphalt plant and stationary asphalt plant. With years of development and commitment, our asphalt plants are exported to many countries or regions due to quality and excellent service, including Australia, Britain, Indonesia and Pakistan. Look forward to cooperating with you in the near future.
