Custom Double Swing Gate - China

Single Swing Gate

Material: Low carbon steel

Wire: 3.0mm-6.0mm

Mesh: 50*200mm, 60*60mm, 76.2*12.7mm, etc.

Height: 1.2-3.0m

Width: 1-4m

Post: 60*60mm, 80*80mm, 60mmOD, etc.

Accessories: hinges, nuts and bolts

Surface treatment: Hot dipped galvanized, PVC coated, powder coated

Packaging: pallets

Certificates: ISO9001, BV, SGS

We can custom Double Swing Gate and we are Sliding Gate supplier

Single swing gate is consist of welded steel mesh panel and stable post, there is round or square tubular post optional.

It is decorative and safe for garden, hedges, patio or terrace to create a walkway to your manor.

We also offer double metal garden gate for garden driveway requirement.

All gate panels are professionally welded, we adopt pre hot dipped galvanized or powder coated to make it anti- corrosion & aging for prolonged use.

Each metal garden gate fitted with the mounting posts and bolt hinges, the installation work is very easy.

Standard hinges are included with all gates up to 6 feet wide.

These hinges allow the gate to only swing one way; you can decide which way they swing on-site during installation.

Rust Free, Easy Installation, Lifetime Warranty.

All gates are custom made to order by hand with stainless steel powder coated screws.

Then framed and welded.

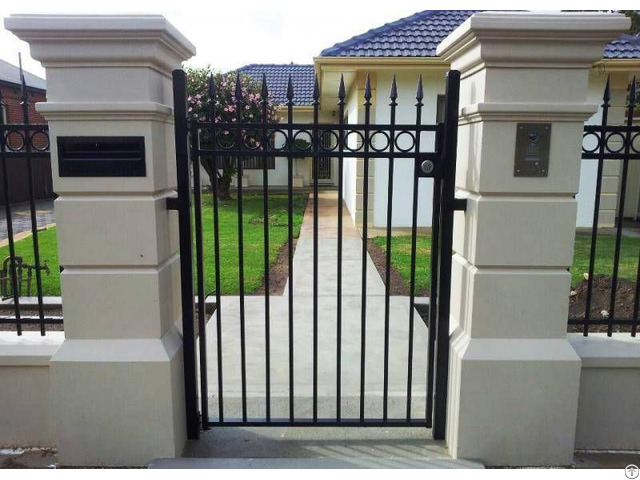

Single swing gate

Mesh panel type Gate height Gate width Mesh size Wire diameter Post

Curvy welded mesh panel 1.2m

1.5m

1.8m

2.0m

2.2m

2.5m

3.0m 0.8m

1.0m

1.2m

1.5m

2.0m 50*200mm

50*100mm

75*150mm 3.0-6.0mm 60*60mm

80*80mm

100*100mm

Chain link mesh panel 50*50mm

60*60mm

80*80mm 3.0-6.0mm 48mmOD

60mmOD

358 mesh panel 76.2*12.7mm

(3’’*0.5’’) 3.0-4.0mm 60*60mm

80*80mm

100*100mm

Steel tube panel Vertical tube space:

10cm

12cm

15cm

17cm Tube size:

15*15mm

19*19mm

30*30mm

40*40mm 60*60mm

80*80mm

100*100mm

Palisade panel Angel rail:

40*40mm

50*50mm Pale size(W/D):

62mm

65mm

70mm 60*60mm

80*80mm

100*100mm

Frame tube: 20*20mm, 25*25mm.

30*30mm, 32mmOD, 38mmOD, etc.

Surface treatment: hot dipped galvanized; powder coated; PVC coated

Include gate post, hinges, nuts, bolts

Above are general specification, others are available.

Material: high quality low carbon steel wire

Post using international standard tube as material (60×60×2.0mm, 75×75×3.0mm, 80×80×3.0mm, 100×100×3.0mm or Dia 60×2.0mm, 75×2.0mm, 80×2.0mm, 89×3.0mm, 100×3.0mm), Frame adopted Pre galvanized tube welded(30×30×1.5mm, 40×40×1.5mm, 40×60×1.5, 60×60×1.5mm)

Fixings: Heavy duty hinges, nuts, bolts.

Surface: Gate use pre hot dipped galvanized wire or tube fabricate and after several clear procedure.

We use famous international powder (AkzoNobel) sprayed.

In that case can got strongly resist the corrosive and ultraviolet radiation.

Double coating layer high quality anti corrupt .

The longevity will 10 years long.

Hot dipped galvanized after fabricated, The Zn can got 5060g/m2 - Longevity will got more than 15 years.
