Automatic Hydraulic Walking Wheel Excavator - China

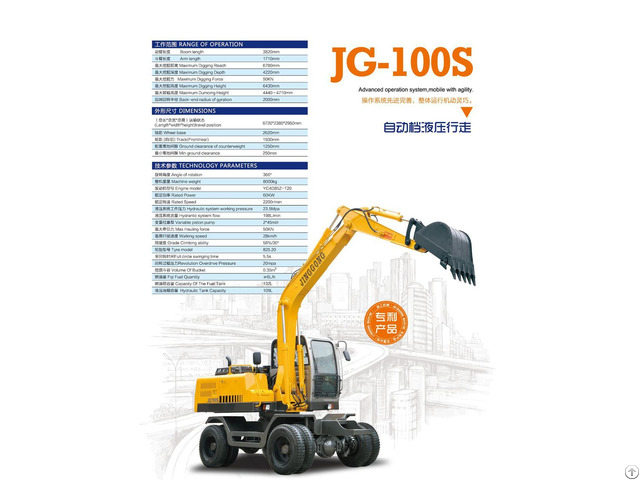

JG100S Tech Specification of wheeled hydraulic excavator:

Range of operation

Boom length 3820mm

Arm length 1710mm

Maximum Digging Reach 6780mm

Maximum Digging Depth 4220mm

Maximum Digging Force 50KN

Maximum Digging Height 6430mm

Maximum Dumoing Height 4440~4710mm

Back-end radius of gyration 2000mm

Dimensions

(Length*width*height)t ravel position 6720*2380*2950mm

Wheel base 2620mm

Track(Front/rear) 1930mm

Ground clearance of counterweight 1250mm

Min ground clearance 250mm

Tech performance and specification

Angle of rotation 360°

Machine weight 8000kg

Engine model YC4D85Z-T20

Rated Power 60KW

Rated Speed 2200r/min

Hydraulic system working pressure 23.5Mpa

Hydranlic system flow 198L/min

Variable piston pump 2*45ml/r

Max Hauling force 50KN

Walking speed 28km/h

Grade Climbing ability 58%/30°

Tyre model 825.20

Full circle swinging time 5.5s

Revolution Overdrive Pressure 20Mpa

Volume Of Bucket 0.35m3

Fqt Fuel Quantity ≥6L/h

Capacity Of The Fuel Tank 137L

Hydraulic Tank Capacity 109L

Company Contact:

• Posted By: JG Excavator

• Phone: 86-(0)21-51860525

• Address: Room23203, No.295 South Lingyan Road, Shanghai city, China, Pudong New District (浦东新区), Shanghai (上海市), China

• Email:

• Website: http://www.jgexcavator.cn

• Business Description: JG Excavator is one of famous brand Chinese engineering machinery and widely used in traffic, municipal engineering, gardens, greening, farms and irrigation works etc.

  Such as grabber loader used for sugarcane and timber lifting flexible and effective with 360°+180° full hydraulic rotate either the wheel or crawler excavator are available.

  Its super performance with high quality and cheap price benefit global users and dealers.

  1 - Mature technical with twenty years professional production on excavator;

  2 - Multifunction devices option, buy one JG excavator could be used lots of engineering.

  3 - Cheap price make you benefit more and lower labor cost, cost return would be 1-2 years;

  4 - High skilled engineer improved the technical advanced with the times, strict quality control and warranty make our machine performance superior.
