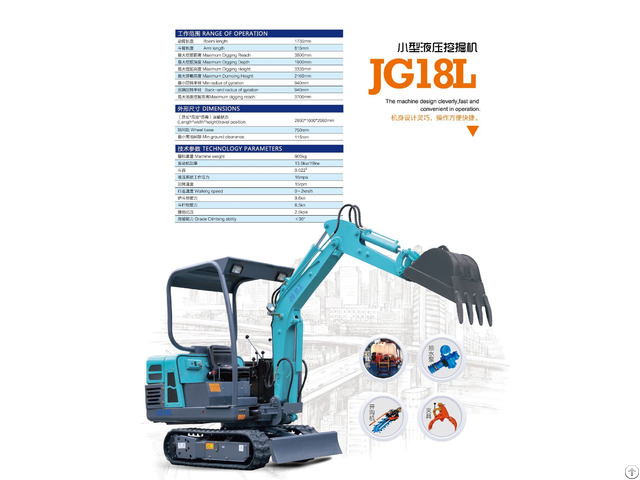

Mini Crawler Excavator - Chinaprice: 35000.00 Dollar US$
Range of operation
Boom length 1735mm
Arm length 815mm
Maximum Digging Reach 3800mm
Maximum Digging Depth 1748mm
Maximum Digging Height 3335mm
Maximum Dumoing Height 2165mm
Min radius of gyration 940mm
Maximum Digging Reach 3700mm
Back-end radius of gyration 940mm
(Length*width*height)travel position 2800*1000*2080mm
Wheel base 750mm
Min ground clearance 115mm
Tech performance and specification
Machine weight 900kg
Hydraulic system working pressure 16Mpa
Rated Power 13.6KW/19KW
Rated Speed 15r/min
Bucket digging force 9.6KN
Walking speed(High speed/low speed) 0-2km/h
Grade Climbing ability <30
Volume Of Bucket 0.022m3
- Posted By: JG Excavator
- Phone: 86-(0)21-51860525
- Address: Room23203, No.295 South Lingyan Road, Shanghai city, China, Pudong New District (浦东新区), Shanghai (上海市), China
- Website: http://www.jgexcavator.cn
Published date: August 19, 2016 -
- Business Description: JG Excavator is one of famous brand Chinese engineering machinery and widely used in traffic, municipal engineering, gardens, greening, farms and irrigation works etc. Such as grabber loader used for sugarcane and timber lifting flexible and effective with 360°+180° full hydraulic rotate either the wheel or crawler excavator are available. Its super performance with high quality and cheap price benefit global users and dealers.
1. Mature technical with twenty years professional production on excavator;
2. Multifunction devices option, buy one JG excavator could be used lots of engineering.
3. Cheap price make you benefit more and lower labor cost, cost return would be 1-2 years;
4. High skilled engineer improved the technical advanced with the times, strict quality control and warranty make our machine performance superior.
