913d 13ton Hydraulic Crawler Excavator - China

china coal-0001

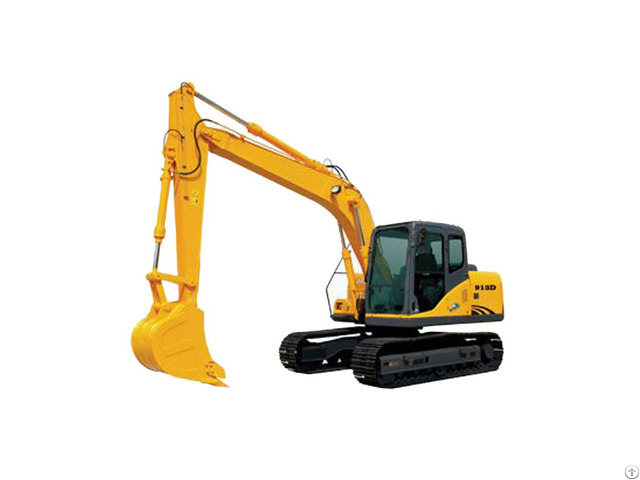

Introduction of 913D 13ton Hydraulic Crawler Excavator

•913D 13ton Hydraulic Crawler Excavator adopts originally imported Cummins B3.9 engine which features Tier 2 standards, energy saving, environmental care, and convenient service and maintenance; •It adopts radial seal air filter with pre-filter which effectively prolongs engine life, with fuel filling pump and pressure transmitter as standard device for higher fuel economy.

•It adopts originally imported hydraulic parts, which features stable and reliable quality, high efficiency, and big digging force; •It adopts new type cab and seats, brand-new interior, and new air conditioning system with automatic adjustment function for comfortable operation;

•New generation electric control system: large color display capable of real time monitoring of machine operation condition, self-diagnosis and recording, electric throttle, and multiple work modes.

•Multiple kinds of buckets and optional parts like dozer blades, breakers, scarifiers, electromagnetic suction cups, quick couplers, etc.

are available for digging, landfill, breaking, and grading operations.

•The multifunctional GPS can achieve remote control and data transfer so that the real time machine conditions can be known.

Parameter of 913D 13ton Hydraulic Crawler Excavator Engine Travel System

Model CUMMINS B3.9-C Travel motors DOOSAN/NABTESCO; Variable axial piston motor

Type Water cooling, turbocharged, empty enter-cooling Support roller quantities 2×7 Carrier roller quantities 2×1

No.

of cylinder 4 Travel shoes 2×44

Bore and stroke 102mm×120mm Travel speed 3.59/5.57km/h

Displacement 3.9L Drawbar pulling force 98kN

Power output 86kW/2200rpm Grade ability 70% (35 degree) Ground clearance 425mm

Hydraulic System Cab and Control

Pump KAWASAKI, Japan Cab All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner

Type variable double–piston pump Max.

discharge flow 2×108L/min Max.

discharge pressure Boom, arm and bucket 31.9MPa Control Two hand levers and two foot pedals for travel Two hand levers for excavating and swing;

Electric rotary-type engine throttle

Travel circuit 31.9MPa Swing circuit 25.5MPa Control circuit 3.9MPa Boom, Arm and Bucket

Pilot control pump Gear type Boom cylinder 105mm×70mm×980mm

Main control valve Negative flow control Arm cylinder 115mm×80mm×1175mm

Oil cooler Air cooled type Bucket cylinder 95mm×65mm×885mm

Swing System Refilling Capacities and lubrications

Swing motor KAWASAKI, Japan Fuel tank 238L

Swing motor type Axial-piston motor Cooling system 20L

Brake Hydraulic oil released Engine oil 15L

Parking brake Hydraulic disc brake Hydraulic oil tank 120L Tank oil level

Swing speed 12.6r/min 208L Hydraulic system

Bucket

Type Backhoe bucket

Bucket capacity 0.55m3 (SAE)

Bucket width 980mm

Arm Type

A Max.

digging depth 8495mm B Max.

dumping height 6065mm C Max.

digging height 5537mm D Max.

vertical digging depth 4907mm E Max.

Depth cut for 2440m(8')Level Bottom 5275mm F Max.

digging distance 8297mm G Max.

digging radius at ground level 8168mm H Min.

swing radius of work equipment 2426mm Arm Type 2500mm

Operating Weight and Ground Pressure

Operating weight includes basic machine (with boom 4.6m, arm 2.5m, and bucket 0.55m3)

Shoe width 500mm

Overall width 2500mm

Ground pressure 39KPa

Operating weight 12800kg
