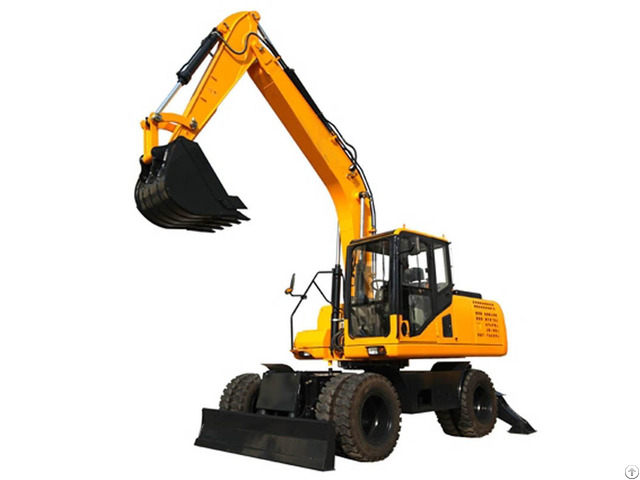

Jhl135 13 5 Ton Wheeled Excavator - China

china coal-0001

Introduction of JHL135 13.5 Ton Wheel Excavator 1 - JHL135 13.5 Ton Wheel Excavator adopting world famous brand engine, with strong driving force, low noise, low oil consumption, and more reliable.

2 - Adopting energy saving hydraulic system, main hydraulic parts using original world famous brand to guarantee the good quality and work performance.

Low energy consumption, fast response speed, precision control, small impact, can keep strong mining capacity and excellent operation efficiency.

3 - Using high performance radiator, unobstructed air flow, fast flow speed, good hear dissipation effect, stable working temperature, and long service life.

4 - The welding of machine main structures use automatic welding robot, key parts welding flaw detection to ensure all parts in high strength, high quality, and to prolong the service life of the machine.

5 - Good vibration and noise effect of the cab, both warm and cool air-conditioner, makes driving comfortable and safe.

Parameter of JHL135 13.5 Ton Wheeled Excavator Standard Bucket Capacity(m3) 0.6

Swing Speed(rpm) 12

Max.

Grade Ability(°) 25

Max.

Bucket Digging Force(kN) 68

Max.

Arm Digging Force(kN) 54

Engine Model YC4A115-T20

Rated Power Output/Revolution(kw/rpm) 85/2200

Tire Type 9.0-20

Set Pressure of Hydraulic Pump(MPa) 32 MAX digging height(mm) 7580

MAX dumping height(mm) 5340

MAX digging depth(mm) 4095

MAX digging radius(mm) 7557

Min swing radius(mm) 2988

MAX dozer lifting height(mm) 558

MAX dozer cutting depth(mm) 80 Packaging: Nuke package or according to customer's requirement

Shpping: Excavators below 9 ton could be load into one 20ft or 40ft containers, excavators beyond 9 ton need to use flat rack or bulk carrier
