Zm 150f 15ton Crawler Excavator - China

china coal-0001

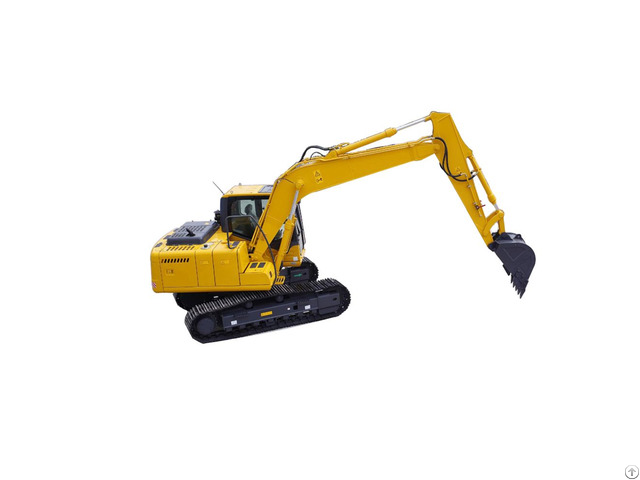

Introduction of ZM-150F 15ton Crawler Excavator

1 - World first-class quality engine and hydraulic system ensure excellent performance of ZM-150F 15ton crawler excavator;

2 - Adopt multifunctional design to make users change accessory equipment such as wide and narrow bucket breaker, breaker and hydraulic clipper etc;

3 - Cab installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system etc, not only make operation convenient, natural and precise, but also reduce working fatigue of operator;

4 - GPS and remote diagnosis system ensure maintenance timely;

Parameter of ZM-150F 15ton Crawler Excavator Engine Travel System

Model ISUZU 4JJ1X Travel motors KYB, Japan;

Type Direct injection, With intercooler

four-stroke;

water cooled, turbocharged;

With intercooler Support roller quantities 2X7 Carrier roller quantities 2X2

No.

of cylinder 4 Travel shoes 2X41

Bore and stroke 95.4X104.9(mm) Travel speed 2.7/5.0(km/h)

Displacement 2.999L Drawbar pulling force 126kN

Power output 84kw/2200rpm Gradeability 70%(350)

Max.

torque 375N.

m/1800rpm Ground clearance 440mm

Hydraulic System Cab & Electrical System

Pump KPM, Japan Cab Cab installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system

Type axial piston pump Max.

discharge flow 2X138(L/min) Max.

discharge pressure Boom, arm and bucket 31.4/34.3 MPa Voltage 24V

Travel circuit 27 MPa Batteries 2X24V

Swing circuit 27 MPa Battery capacity 160Ah

Control circuit 3.9 MPa Boom, Arm & Bucket

Pilot control pump Gear type Boom cylinder 105x70xS941-L1448

Main control valves KYB, Japan Arm cylinder 115x80xS1135-L1650

Oil cooler Air cooled type Bucket cylinder 100x70xS875- L1350

Swing System Refilling Capacity & lubrication

Swing motor KPM Japan Fuel tank 240 L

Swing motor type Axial-piston motor Cooling system 22 L

Brake Hydraulic oil released Engine oil 13 L

Parking brake Hydraulic disc brake Hydraulic oil tank 120 L Tank Oil Level

Swing speed 12.4 r/min 185 L Hydraulic System Bucket

Type Backhoe bucket

Bucket capacity 0.55m3(SAE)

Bucket capacity scope 0.55-0.60 m3

Number of bucket teeth 5

Bucket width 1020 mm

Working Ranges Boom length 4600mm A Max.

digging depth 5569mm B Max.

dumping height 6200mm C Max.

digging height 8659mm D Max.

vertical digging depth 4500mm F Max.

digging distance 8387mm G Max.

digging reach at ground level 8261mm H Min swing radius of work equipment 2509mm Digging Force (ISO6015) Arm length 2520mm A Bucket digging force 99.7 KN B Arm digging force 73.8 KN Overall Dimensions

A Overall length 7723mm I Track grounding length 2930mm

B Ground contact length 4073mm J Track length 3630mm

C Overall height(to top of boom) 2740mm K Track gauge 1995mm

D Overall width 2495mm L Track width 2495mm

E Overall height(to top of cab) 2767mm M Track Shoe width 500mm

F Counter weight ground clearance 932mm O Bonnet height 1858mm

G Min Ground clearance 440mm P Revolving frame width 2490mm

H Tail swing radius 2308mm Q Distance from swing center to tail 2205mm Operating Weight and Ground Pressure

Operating weight includes basic machine;

Operating weight 14250 Kg

Ground pressure 42 KPa
