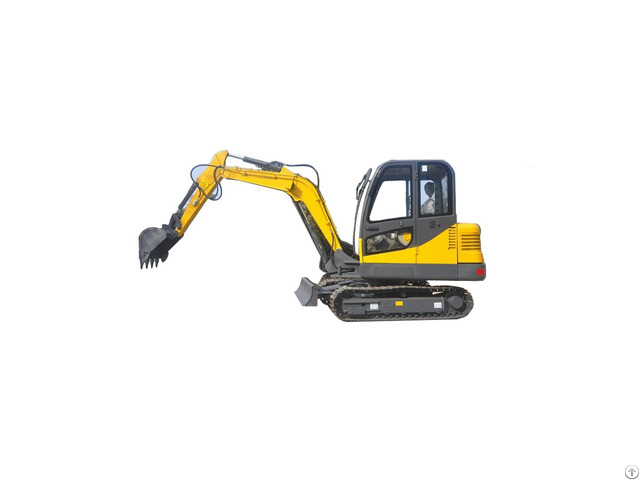

Zm 45f 4 5ton Track Excavator - China

china coal-0001

Introduction of ZM-45F 4.5Ton Track Excavator 1 - ZM-45F 4.5ton Track Excavator Has passed CE certificate

2 - Originally imported Yanmar engine 4TNV88(25.2KW/2200rpm), low noise, low fuel consumption, big torque;

3 - Main pump, valve, swing motor and travel motor are equipped with originally imported KYB

4 - Date collected by sensors to prompt power system and hydraulic system cooperate well to improve 10% dig force

5 - Hydraulic pipe from America Gates with reliable quality

6 - X Shape undercarriage guarantee the stability in bad work condition

7 - Standard equipment Air Conditioner Parameter of 4.5ton Track Excavator

Engine Travel System

Model YANMAR 4TNV88 Travel motors KYB, Japan;

Type Direct injection, water cooled, natural intake Support roller quantities 2×5 Carrier roller quantities 2×1

No.

of cylinder 4 Travel shoes 2X35

Bore and stroke 88X90(mm) Travel speed 2.7/4.4(km/h)

Displacement 2.19L Drawbar pulling force 35kN

Power output 25.2kw/2200rpm Gradeability 58%(300)

Max.

torque 142N.

m/1200rpm Ground clearance 350mm

Hydraulic System Cab & Electrical System

Pump KYB, Japan Cab All-weather, sound-suppressed Caband equipped with a heavy, insulated Floor Mat, Front Window can be opened and slided; adjustable Seat; LED display, Automatic monitoring, display

Type axial piston pump+ gear pump Max.

discharge flow 2x45.7+36.9(L/min) Max.

discharge pressure Boom, arm and bucket 21.5 MPa Voltage 12V

Travel circuit 15.7 MPa Batteries 1x12V

Swing circuit 15.7 MPa Battery capacity 80Ah

Control circuit 3.9 MPa Boom, Arm & Bucket

Pilot control pump Gear type Boom cylinder Φ90xΦ50xS552-L915

Main control valves KYB, Japan Arm cylinder Φ85xΦ50xS580-L920

Oil cooler Air cooled type Bucket cylinder Φ70xΦ45xS443-L745

Swing System Refilling Capacity & lubrication

Swing motor KYB, Japan Fuel tank 82 L

Swing motor type Axial-piston motor Cooling system 12 L

Brake Hydraulic oil released Engine oil 6L

Parking brake Hydraulic disc brake Hydraulic oil tank 59L Tank Oil Level

Swing speed 10 r/min 85L Hydraulic System

Bucket

Type Backhoe bucket

Bucket capacity 0.17m3 (SAE)

Bucket Capacity scope 0.069-0.24m3

Number of bucket teeth 4

Bucket width 640 mm

Working Ranges

Boom length 2650m A Max.

digging height 5030mm B Max.

dumping height 3410mm C Max.

digging depth 3405mm D Max.

vertical digging depth 2900mm F Max.

digging distance 5530mm G Max.

digging reach at ground level 5420mm H Min swing radius of work equipment 2185mm Digging Force (ISO6015) Arm length 1450mm A Bucket digging force 23.7 KN B Arm digging force 21.6 KN Overall Dimensions Unit: mm

A Overall length 5500mm I Track grounding length 1710mm

B Ground contact length 3353mm J Track length 2190mm

C Overall height(to top of boom) 1861mm K Track gauge 1400mm

D Overall width 1750mm L Track width 1750mm

E Overall height(to top of cab) 2455mm M Track Shoe width 350mm

F Counter weight ground clearance 585mm O Bonnet height 1437mm

G Min Ground clearance 350mm P Revolving frame width 1600mm

H Tail swing radius 1600mm Q Distance from swing center to tail 1600mm

Operating Weight and Ground Pressure

Operating weight includes basic machine;

Operating weight 4200 Kg

Ground pressure 36 KPa
