Pvc Window Making Machines V Notch Cutting Saw - China

price: contact company for price

Features:

1. Automatic V-cutting of UPVC Window profile

2. Two hand safety operation

3. Pneumatic clamping

4. Adjustable V-notch depth based on different profile.

5. Adjustable feeding speed.

6. Automatic shaping of one pair of saw is cut

7. Two saw blade on two separate motor fixed at 45 degree

without cross

8. Guide rod assist positioning

Parameter

Air Pressure 0.5~0.8(MPa)

Air Consumption 50(L/min)

Input Voltage 380V/50Hz or customer specification

Input Power 1.5(Kw)

Spindle Rotary Speed 2800(r/min)

Saw Blade Specification Φ300X3.2X Φ30

Cutting Height 20~60(mm)

Cutting Width 120(mm)

Cutting Length 300~1600(mm)

Overall Dimension 1800× 1380× 1300(mm)

Weight 220(kg)

Main accessory:

SA blade Japan UNIKEN

Solenoid valve Germany FESTO

Cylinder JPC(FESTO Joint Venture Brand)

MotorAnhui Sanyang

(Best Chinese Motor Brand)

Air Filter Device STNC

Electrical Button and Switcher Schneider

AC Contactor and Circuit Breaker Schneider

Approach Switcher Swiss CONTRINEX or Japan Omron

Standard accessory:

Saw blade: 2PCS Support Arm 1 set

Air Gun: 1PC Complete tooling: 1set

Certificate: 1PC Operation Manual: 1PC

Optional Device:

Coolant Spray Device Centering device.

Our Advantage:

1. Over 15 years of manufacturing experience

2.20 offices in China and 7 overseas offices

3. Quality assurance system thanks to partnership with

Festo, Schneider, Omron, etc

4. Made-to-order capability

RELATED WINDOW MACHINE

PVC CUTTING SAW:

Single Head Cutting Saw (SS350)

Double Head Cutting Saw (DS350× 3500)

Double Head Cutting Saw (DS450× 3700) Digital Display

Avaliable

Double Head Cutting Saw Digital Display Avaliable /

Automatic Model Avaliable (DS450× 3600 / DS450× 5000)

V Notch Cutting Saw (VS60 / NVS60)

Mullion Cutting Saw (MS55)

Glazing Bead Saw (GBS1800 / GBST1800)

ALUMINUM CUTTING SAW:

Double Head Cutting Saw (DS500× 4200 / LJZ2B-500× 4200)

Digital Display Avaliable / Automatic Model Avaliable

MILLING MACHINE

Auto Water Slot Milling Machine (WSM2 / WSM3 / WSM4 / AWSM3)

Copy Router One Head (CR290)

Lock Hole Milling Machine (LHM100 / NLHM100)

Cap Seal Milling Machine (CSM80)

Cap Seal Punching Machine (LY-BD)

Auto End Milling Machine (EM200 / EM80)

Multi-drilling Machine (MHD4-5000)

WELDING MACHINE

Single Head Welding Machine for 2mm (SHT01)

Single Head Welding Machine for None 90 Degree (SH01)

Two Head Welding Machine for 0.2mm&2mm Auto Change (HTWA2 /

HTW2SA-120)

Two Head Welding Machine for 0.2mm (HTW2-120 / NHTW2-120)

Two Head Welding Machine for 0.2mm for South Korea Style

(HW2S260)

Three Head Welding Machine for 0.2mm&2mm Auto Change (HTWA3

/ HTW3SA-120)

Three Head Welding Machine for 0.2mm (HTW3-120 / NHTW3-120)

Four Head Welding Machine for 0.2mm&2mm Auto Change (HTWA4 /

HTW4SA-120)

Four Head Welding Machine for 0.2mm (HTW4-120 / NHTW4-120)

Cross Welding Machine (CW-100)

CNC Vertical 4 Point Welding Machine (Full Auto) (AVW3000)

CNC Vertical 4 Point Welding Machine for 0.2mm&2mm

(AVW3000S)

Vertical 4 Point Welding Machine (Semi-Auto) (VW3000)

CNC Horizontal 6 Point Welding Machine (AHW6000)

CORNER CLEANER

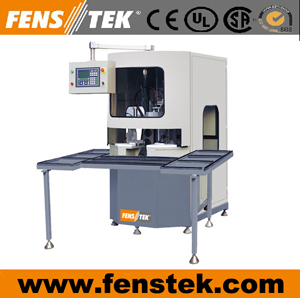

CNC Corner Cleaner (ACC120)

Flat Corner Cleaner (FCC120)

V Corner Cleaner (VCC120)

Corner Cleaner (CC120)


Company Contact:


  • Phone: 8653158775781

  • Address: 15F, Blog NO.3.Zhongtie Caizhi Center, NO.59 Gongy, Jinan, China

  • Email: Email


Published date: August 20, 2013 -

  • Business Description: Fenstek is an engineering firm that has been in business for over 15

    years which specialized in the manufacture and supply the window

    fabricating machinery. Many of our employees including key engineer have

    been in the company in excess of 15 years. You won t find that level of

    experience elsewhere. That quality of accumulated knowledge guarantees

    the good service and product knowledge. Our advantages include, but not

    limited to, machinery for PVC window and door, aluminum window and door,

    and insulating glass as well as curtail wall machinery.

    As a progressive company, we have developed an unique diverse staff dedicated to develop new products with the total investment of $100.000 each year. And the new product spring at a rate of 10 annually. They are assembled to offer a wide range of second to none services focused not just on the end products, but the customer s specific needs and requirements in each case. Reaching beyond accurate documentation or targeted deadlines to achieve the object of total customer s satisfaction.

    We are finding creative solutions with the practical constraints of each project from our customers and upgrade our services and technology year by year. We integrate integrity, hard work, and our personal brand of involvement, resulting in one success after another year after year. Now, Fenstek is aiming at caring for your windows on the basis of sincere, speedy, specialized, smart, study, and support, this is our core value and key to success.
