Tk Cs71 Hd Multi Viewer Display Processor - China

price: 455.00 Dollar US$

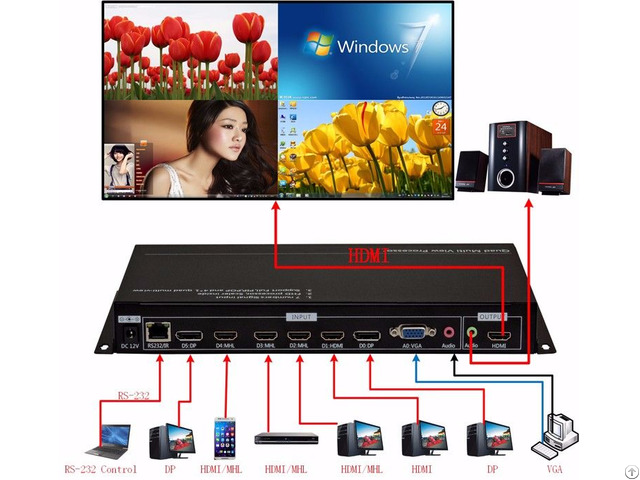

TK-CS71 HD Multi-Viewer with resolution up to 1920*1080 and 1VGA, 2DP, 4HDMI( 3-way compatible MHL)input and 1 HDMI output.


The main function

support a single display unit simultaneously display 4 HD signals, or switch a certain signal to full-screen display ;

support 1 channel VGA, 2-way DP, 4-way HDMI (including 3-way compatible MHL) signal input;

support 1 HDMI output, output resolution up to 1920 * 1080 / 60HZ;

all input signals contain audio, support audio and video synchronous switching and four audio independent switching under quartering;

support image fixed position POP, PIP function

support control by chassis buttons, IR remote control, RS-232 serial port and the center control;



TK-CS71 Details

1, Pure hardware construction

Adopt pure hardware construction, without CPU and memory, so booting only need 3 to 5 minutes, system stability, without crash, virus and system breakdown;can uninterrupted work for 24 hours a day of 365 days a year .



2, Advanced DSP image process

Adopt DSP that is the most powerful image chip process technology at present.DSP support various world's leading image processing technology, for example:DCDI edge smooth, ACM color automatically adapt, CSS light crosstalk suppression, SHARPNESS enhancement, dynamic contrast ratio enhancement, the real six axis color overlap, eliminate the noise amplification ect.

In addition, possess many advanced function like 3D comb filter video decoding function, 3D noise reduction and automatic adapt moving compensation's remove isolation technology, skin color adjust, enhance color brightness, GAMMA adjust and frame frequency switch ect. Which make output image texture smooth and sharp, clear and fluent, bright color without sawtooth and trailing .



3, Powerful operation capability

Data use parallel processing, output port occupy one channel and data bandwidth reach 10.2G/S .So It can fully achieve high output resolution display of 1920*1080/60.High speed dynamic image without trailing, delay, tear, frame loss, image catch up phenomenon.



4, Supports HD input and output signals of 1920 * 1080

TK-CS71 HD Multi Viewer supports 1 VGA, 2-way DP, 4 HDMI input, HD video support interlaced and progressive input. Ultra high resolution up to 1920 * 1080/ 60HZ, and backward compatible; all input signals through professional-level image processing chip, the progressive maximum output resolution of 1920X1080 / 60HZ, and backward compatible of 1280 * 720 / 60HZ.



5, Audio and video SYNC switch

TK-CS71 supports audio and video SYNC switching. DP and HDMI embed audio signal, VGA external binding Audio signal input. When zoom in on a certain window, full-screen display the signal, audio signals may follow switching or independent switching audio signals under quartering mode.



6, Ultra-Low Power

Products using ultra-low-power, the actual power is only 10W or so under operational state, no cooling fan, saving energy and environment protection, no noise pollution, adapt to a variety of relatively strict noise control meeting or other places.



7, Multiple display modes

TK-CS71 but four split screen and full-screen display, it can also support a variety of different display modes.



control method

1, Software Control

TK-CS71 HD multi-viewer contain standard software.exe of green control software with visual interface, available while booting, undesired installation. By controlling the software can completely realize full-function.



2, Infrared remote control

You can set 12 kinds of fast mode by remote controller, no need to have to reboot the computer and the software can be realized to call the original setting mode, simple and convenient.



3, Chassis control buttons

By chassis button, you can quickly switch to four screen display, or select a certain signal to full-screen display; and can achieve audio and video synchronous switch.



4, Center control

TK-CS71 adopt commonly used control code, the user can centralized control after writing control code according user's to demand.

Packaging Details

Unit Type: piece
Package Weight: 1.850kg (4.08lb.)
Package Size: 40cm x 25cm x 10cm (15.75in x 9.84in x 3.94in)


Company Contact:


  • Phone: 075529108699

  • Address: Longhua new district, Shenzhen, Guangdong, China

  • Email: Email


Published date: December 22, 2016 -

  • Business Description: TuuKoo (International) Limited is a global company specializing in Video equipment and components. With advanced R&D centers and manufacturing facilities located in Shenzhen, China, we are a leader in designing and producing world-class video devices. Our product range includes Video wall controller series, HD video synthesizer series, video matrix switchers series, seamless switchers series, and other video devices. Our products are very popular in China and east Aisa.

    TuuKoo (International) Limited enjoyed a high reputation in many of its unique technologies, We have our Research and Development team, and working on the video more then ten years, have a lot of video solutions, our products support 24(hour)X7(day)X365(year) work, we supply good reliable and stable product to evey customer, and our service team will supply good support to custmers.

    We keep our ears listening to the need of the market, and definitely keep a certain high investment on the core technology researching and developments activities. This is the powerful source of us, and we will stick to the original innovation ability improvement.
