Tk Fh4000 Hd 4k Multi Viewer - China

TK-FH4000 HD 4K Multi-Viewer is a high-performance image processor with resolution up to 3840*2160@60HZ and downward compatible, it's main function is to make 4 HD or analog signal display in one ultra HD display unit SYNC.

Main Function

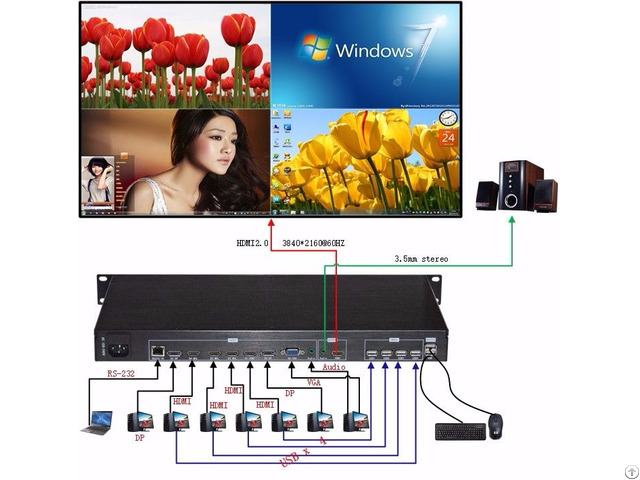

1 - Supports one VGA, 2-way DP, 4-way HDMI (including 3-way compatible MHL) input signal, the input resolution up to 3840 * 2160 @ 60HZ, downward compatible;

2 - Supports one HDMI 2.0 output, the output resolution up to 3840 * 2160 @ 60HZ;

3 - Support point-to-pointsimultaneou s display 4-way 1920 * 1080 full HD signal;

4 - Input and output signal wide support audio, also support 3.5mm headphone jack and the left and right channel stereo output;

5 - 2 USB signal output, USB connection support mouse and keyboard, and USB with image synchronous switch;

6 - Single screen simultaneously displays four HD digital / analog signals, or switchingto whichever signal full-screen display;

7 - Support image fixed position, PIP, POP function

8 - Wide support 90V ~ 264V AC input, can be commonly used to any country worldwide;

9 - Standard 19-inch 1U chassis drawing directly put on the cabinet;

10 - Support case key, infrared remote control, RS232 serial control and the center control;





Detailed Introduction about TK-FH4000

1, Pure hardware construction

Adopt pure hardware construction, without CPU and memory, so booting only need 3 to 5 minutes, system stability, without crash, virus and system breakdown;can uninterrupted work for 24 hours a day of 365 days a year .



.

2, Advanced DSP image processing techniques

Adopt DSP that is the most powerful image chip process technology at present.

DPS support various world's leading image processing technology, for example: DCDI edge smooth, ACM color automatically adapt, CSS light crosstalk suppression, SHARPNESS enhancement, dynamic contrast ratio enhancement, the real six axis color overlap, eliminate the noise amplification ect.

In addition, possess many advanced function like 3D comb filter video decoding function, 3D noise reduction and automatic adapt moving compensation's remove isolation technology, skin color adjust, enhance color brightness, GAMMA adjust and frame frequency switch ect.

Which make output image texture smooth and sharp, clear and fluent, bright color without sawtooth and trailing .



3, Powerful operation capability

Data use parallel processing, output port occupy one channel and data bandwidth reach 10.2G/S of each channel .

Without trailing, delayde, tear, frame loss, image catch up phenomenon.



4, Supports 3840 * 2160 HD input and output signals

TK-FH4000 HD video multiplexers supports 1 channel VGA, 2-way DP, 4 HDMI input signal, HD video supports interlaced and progressive input.

Products up to ultra high resolution of 3840 * 2160 @ 60HZ signal input, and downward compatible.



5, USB switch function

TK-FH4000 video multiplexers can also support USB with the picture simultaneously switching function, which perfect solution the problem of preproduct can't synchronous switch video and USB connecting devices (such as USB mouse, keyboard, etc.

).

Which allow the users to operate the product more convenient, more efficient, more economical of display terminal device and save more room of operation.



6, Ultra-Low Power

Products using ultra-low-power design, the actual power under operational state is only around 3W .



7, Multiple display modes

TK-FH4000 but quad video display and full-screen single display, it can also support a variety of different display modes.

8, Audio and video switching functions

TK-FH4000 4K Quad video multiplexers except can display video signals, but also supports audio and image synchronization switch or under quad mode select a picture corresponding audio play, which to fill the gaps that pre HD video multiplexers can not be achieved audio capabilities.



Control method

1, Software Control

TK-FH4000HD video multiplexers contain green control visual interfaceTK-FH sofeware.

exe, available when starting up, can achieve global function by control sofeware.

2, Infrared remote control

3, Chassis control buttons

By case key, you can quickly switch to four split screen display, or select a full-screen display a signal; and an image can be achieved sync switch with a USB mouse, keyboard and audio.

4, center control

TK-FH4000 adopt frequently-used control code, user using center control after write control code into center processor accordding to demand;
