Tk Tn702 Switcher - China

Product Description

TK-tn702 switcher is a high-performance, the internal use high-speed image processing chip, its main function is achieving image cropping of screen and display the middle part for smart phones full-screen display on a vertical screen; turn certain input signal of HDMI, DP, phone MHL, VGA into HDMI output .

Products can achieve sound signals and video synchronous switch under different formats, and achieve rotate the degree of 90, 180, 270 of image.

the product input and output resolution is up to 1920x1080/60HZ.

Detailed function

1, input signal

Supports1 VGA, 2-way DP (Display Port), 4-way HDMI, 1-way Audio (binding VGA signal) input, the input signal up to 1920 * 1080 @ 60HZ and backward compatible.

2, Phone MHL input

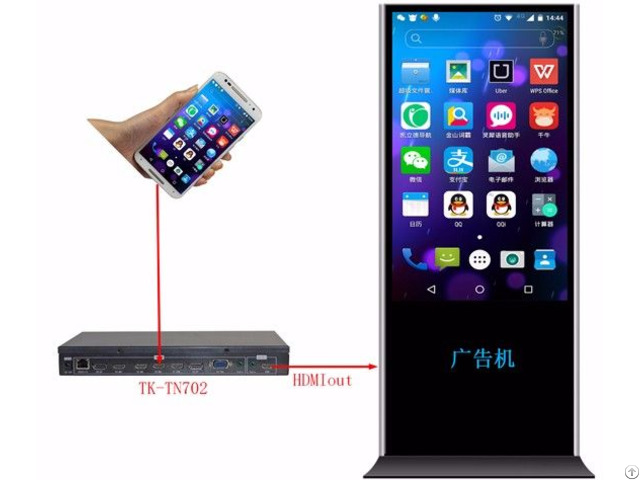

3 HDMI port of product directly support MHL signal input, through the MHL to HDMI cable to connect the phone, can display images output of the phone, to achieve this feature requires phone support MHL function.

3, output signal

1 channel HDMI 1.4 and 1 channel Audio stereo output, the output resolution optional 1280x720 @ 60HZ and 1920x1080 @ 60HZ;

4, Switching function

By remote control, the keys of the chassis, the control software, or the center control, it can switch certain input signal into HDMI signal output to the display unit, and have achieved video, audio synchronous handover;

5, cut

Achieving image cropping of screen, display the middle part of the image, mainly for smart phones full-screen display on a vertical screen.

6, Fold line function

Different resolutions, different refresh rates of Signals and different formats of VGA, DP, HDMI, MHL, through fold line function convert to fixed resolution HDMI signal output, the output resolution 1280*720@60HZ;

7, Image rotation function

By infrared remote control, cabinet buttons realize 90 degrees, 180 degrees, 270 degrees rotation of image for the site-specific needs.

control method

By infrared remote control, cabinet buttons, RS-232 serial port can switching the image, image rotation, switching resolution, simple and convenient.
