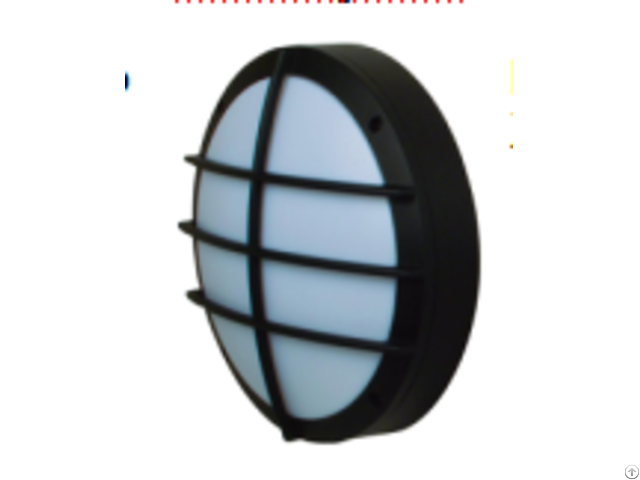

Led Bulkhead Light Round With Wire Guard 20w 270mm Ip65 For Bathroom - China

led Bulkhead light Round shape can be designed with or without wire guard, 20W 85-265VAC IP65 wall mounted 270*270mm die cast Aluminium housing LED bulkhead light Round 20W applications led bulkhead light round details : 1 - power : 20W 2 - Material : Die cast Aluminium housing 3 Luminous Flux : 1600lumen 4 - CCT: 3000K/4500K/6000K 5 - Voltage : 85-265VAC 6 - IP rate : IP65 7 .

IK rate : 1k10 8 Size : 270*270*100mm LED bulkhead light round 20W NO Items Parameters

1 Input Voltage 90-265V 42-63HZ

2 Input Current 0.114A(230V)

3 Power 20W

4 Output Voltage 30V

5 Output Current 0.67A

6 Power Factor >0.9PF

7 Luminous Efficiency ≥85%

4 - NO Items Parameters

1 Beam angel (H, V) 115°

2 Peak Light Intensity 514cd

3 Luminous Flux 1600Lm

4 Color Rendering Index ≥70Ra

5 Color Temperature 2800-3200k /4000-4500k/5500-6000k


4 - 3, Physical Parameters:

NO Items Parameters

1 Working temperature -40°— 60°

2 IP range IP65

3 N.

W 1.4Kg

4 Length 270mm

5 Width 270mm

6 Height 80mm Applications for led bulkhead light round indoor : bathroom, living room, spa, hotel, resturant, kitchen outdoor : car park, villa, community, garden .

etc
