3d Hd Cec 1 8 1x8 Port 1080p Hdmi Rsplitter - China

price: contact company for price

Our series of HDMI converters. switchers, extenders, matrixes and

splitters are designed to make your A/ V device use more convenient ,

more comfortable, more productive and more cost- efficient.

The 1x8 HDMI Splitter use a single HDMI source, accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to eight HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Sincere service is our philosophy. . Customer satisfaction is our aim . our company will be the most preferential prices to provide customers the best products and wholeheartedly provides the high- quality service for the customer

FEATURES

lOne HDMI 1.3b input signal split to eight HDMI 1.3b sink devices

lSupport CEC

lIt is compatible to HDCP1.2

lSupport deep color 30bit, 36bit

lSupport Blue- Ray 24/ 50/ 60fs/ HD- DVD/ xvYCC

lDigital audio format, as DTS- HD/ Dolby- trueHD/ LPCM7.1/ DTS/ Dolby- AC3/ DSD

lSupport signal retiming

lSupport input up to 15metres AWG26 HDMI 1.3 standard cable length,

output up to 25metres AWG26 cable length

lNo signal loss

lInstalls in minutes

lNeed DC5V/ 3A power supply

Operating and Connecting:

Connect one cable from HDMI source devices into HDMI Splitter input.

Connect one cable from each display ( monitor or projector) into the HDMI Splitter outputs.

Connect 5V power supply to the Mini HDMI 1x8 Splitter.

SPECIFICATIONS: HDMI0108

HDMI version

HDMI 1.3b

HDCP version

HDCP1.3

HDMI resolution

24/ 50/ 60fs/ 1080p/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i

Support video color format

24bit/ deep color 30bit, 36bit

Support audio format

DTS- HD/ Dolby- trueHD/ LPCM7.1/ DTS/ Dolby- AC3/ DSD

Max bandwidth

225MHz

Max baud rate

6.75Gbps

Input/ Output TMDS signal

0.5~1.5Volts p- p( TTL)

Input/ Output DDC signal

5Volts p- p ( TTL)

Input cable distance

≤ 15m AWG26 HDMI 1.3 standard cable

Output cable distance

≤ 25m AWG26 HDMI 1.3 standard cable

Max working current

1.4A

Power adapter format. . Input:

AC ( 50HZ, 60HZ) : 100V- 240V; Output: DC5V/ 3A

Operating Temperature range

( - 15 to +55°C)

Operating Humidity range

5 to 90% RH ( No Condensation)

Dimension ( L x W x H)

277X136X24mm

Weight

740g

A HDMI Splitter

( 1) HDMI Splitter 1* 2: HDMI Splitter 1x2, 2 ports HDMI Splitter, 1 input, 2 outputs, HDMI Distribution Amplifier 1x2, HDMI 1.3V, 1080P, 2 ways HDMI Splitter, Full HD 1080P.

( 2) HDMI Splitter 1* 4: HDMI Splitter 1x4, 4 ports HDMI Splitter, 1 input, 4 outputs, HDMI Distribution Amplifier 1x4, HDMI 1.3V, 1080P. ( four ways HDMI Splitter) ( Full HD 1080P) .

( 3) HDMI Splitter 1* 8: HDMI Splitter 1x8, 8 ports HDMI Splitter, 1 input, 8 outputs, HDMI Distribution Amplifier 1x8, HDMI 1.3V, 1080P. ( eight ways HDMI Splitter) ( Full HD 1080P) .

B. HDMI Switcher( 1) HDMI Switcher 3* 1 : HDMI Switcher 3x1, 3 ports HDMI Switcher, 3 inputs, one output, 3 port HDMI Switch, HDMI 1.3V, 1080P( 3 ways HDMI Switcher)

( 2) . HDMI Switcher 4* 1: HDMI Switcher 4x1, 4 ports HDMI Switcher, 4 inputs, one output, 4 port HDMI Switch, HDMI 1.3V, 1080P( 4 ways HDMI Switcher) .

( 3) . HDMI Switcher 5* 1 : HDMI Switcher 5* 1, 5 ports HDMI Switcher, 5 inputs, 1 output, 5 port HDMI Switch, HDMI 1.3V, 1080P( 5 ways HDMI Switch) .

C. HDMI Matrix

( 1) HDMI True Matrix 4x2 : HDMI True Matrix 4x2, 4 inputs, 2 outputs, HDMI Matrix Switch 4* 2, HDMI Matrix 4* 2, HDMI 1.3V, 1080P. ( Switcher+splitter)

( 2) HDMI True Matrix 4x4 : HDMI True Matrix 4x4, 4 inputs, 4 outputs, HDMI Matrix Switch 4* 4, HDMI Matrix 4* 4, HDMI 1.3V, 1080P. ( Switcher+splitter)

D. HDMI Converter

( 1) VGA TO HDMI CONVERTER : VGA to HDMI Converter, HDMI Converter, vga to hdmi, vga input, hdmi output, HDMI 1.2V, 1080i( VGA+r/ l to HDMI)

( 2) DVI TO HDMI CONVERTER : DVI TO HDMI CONVERTER, , HDMI CONVERTER, DVI Converter, dvi input, hdmi output, HDMI 1.2V, 1080i( dvi+spdif to HDMI)

( 3) Ypbpr TO HDMI CONVERTER : Ypbpr TO HDMI Converter, HDMI CONVERTER, ypbpr to hdmi, component to hdmi converter, ypbpr input, HDMI output, HDMI 1.2V, 1080i. ( Ypbpr or Component+SPDIF TO HDMI) .

E. HDMI Extender, HDMI Extender,

60m HDMI Extender, HDMI TO HDMI Extender, cat5/ 6 Extender, HDTV Cable Extender, high- definition extender, LAN CABLE Extender, HDMI 1.2V, 1080P. ( UTP Cable Extender) .


Company Contact:


  • Phone: 861507093471

  • Address: 5/F, Building 25, Shangxing 3rd Industrial Park, S, shenzhen, China

  • Email: Email


Published date: July 21, 2014 -

  • Business Description: we have own factory to produce HDMI splitter、converter、switcher、extender、matrix and so on.Our company is located in Bao'an District, Shenzhen, which is the center of electronic products. We are a technology company professionally engaged in the research, manufacture and sales of high definition HDMI equipment. We also undertake ODM and OEM

    Our company brings together a group of passionate and young elites, with many years of experience in electronics R&D, design, manufacturing and sales. We are specialized in the R&D, manufacture and sales of electronic products and even the main control boards. Our self developed products contain: distributor, converter, switch, extender, matrix, amplifier, HD player and high definition stream analyzer and other electronic products. OEM and ODM, electronic product development, design and production are also accepted.

    With "Technological innovation" as the concept of the development to serve the customers and the community, we always uphold the "professional, concentrate, focus, dedication, integrity, innovation, gratitude, responsibility" business philosophy, and are dedicated to electronic technology research and development.

Related listings

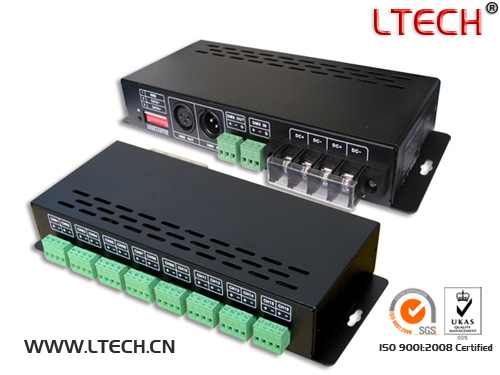

  • Lt 880 350 16ch Cv Dmx Pwm Decoder
