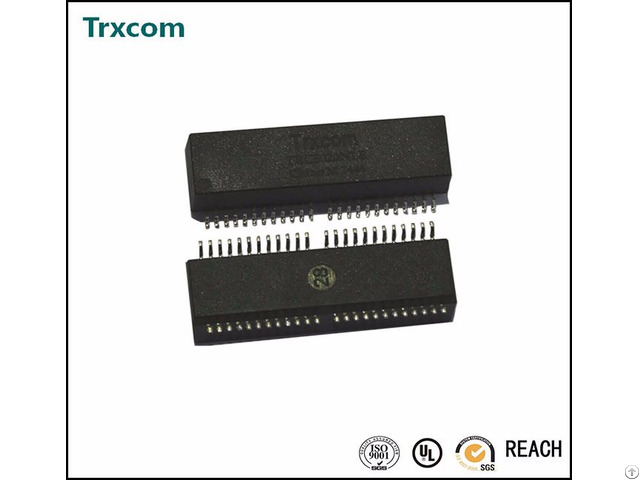

1000base Tx Dual Port Smt Type Poe Lan Transformer Trc6080nl - China

price: 0.88 Dollar US$

1000Base-TX Lan Transformer
With PoE Function
48Pins
SMT Type
Dual Ports
1:1 transmit and receive turn ratios
Isolation Voltage: 1500Vrms
Temperature:0 TO 70 ℃
UL, RoHs, Reach, ISO9001:2008
Free sample available for testing

1. Designed to support application, such as SOHO (ADSL modems), Lan-on-Motherboard(LOM), hub and switches.
2. Gigabit transformer modules with PoE+ compliance
3. Meets IEEE 802.3 at specification
4. 350uH min OCL with 8mA bias current
5. RoHs "NL" peak solder rating 260℃±5℃
6. UL certification: File Number E321120

ELECTRICAL SPECIFICATION @25℃
1. Turn Ratio: TX= 1CT: 1CT RX=1:1
2. OCL: 350uH Min @100KHz, 100mV, 8mA DC Bias
3. Insertion Loss(dB Max):
0.1MHz: -1.1 100MHz: -1.0 125MHz: -2.0
4. Return Loss(dB Min)
30MHz: -18 60MHz: -12
80MHz: -12 100MHz: -10
5. Croaa Talk(dB Min):
30MHz: -43 60MHz: -37 100MHz: -33
6. Hipot(Vrms MIN): 1500
7. PoE Applications CABLE side with 750mA Current Capability
7. Operatin Temperature: 0-70℃


Company Contact:


  • Phone: 86--13554918626

  • Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen, Guangdong , China

  • Email: Email


Published date: August 23, 2016 -

  • Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic,Lan Transformer, Audio transformer.

    The products are widely used in networking and communication equipments such as HUB,PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
    1) 10/100/1000M LAN pulse transformer and filter
    2) RJ45 connector with 10/100/1000M magnetic
    3) T1/E1, T3/DS3/E3.STS-1 interface line transformer
    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
