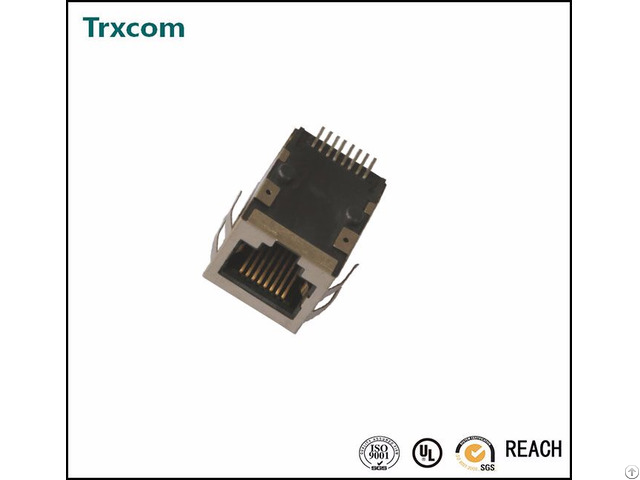

100m Single Port Tab Up Smt Rj45 Connector With Transformer Trj19201bgnl - China

price: 0.80 Dollar US$

10/100 Base-T RJ45 Connector
With Led and non EMI-finger
Feature: SMT/SMD
Single Port
Led: Yellow & Green
Tab Up
Pin type: the solder
RoHs Compliant: YES
UL, Reach, RoHs, ISO9001: 2008
Free sample available for testing

Surface Mount 1X1 Tab-Up Jack With 10/100 Magnetic
1. Meets IEEE 802.3 specification
2. Connector Materials:
Housing: Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min. In contact area.
3. Wave solder tip temperature: 260℃ Max, 5 Sec Max
4. UL Certification: File Number E321120

1. Turn Ratio (±3%)
2. Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3. DCR: 1.2Ω MAX
4. Insertion Loss:
-1.0 dB MAX @ 1-100MHz
5. Return Loss:
- 18dB MIN @ 1-30MHz
- 15dB MIN @ 30-60MHz
- 12dB MIN @ 60-100MHz
6. Cross talk:
- 40dB MIN @ 30MHz
- 35dB MIN @ 60MHz
- 30dB MIN @ 100MHz
7. Common Mode Rejection:
- 30dB MIN @ 1-100MHz
8. Hipot Test: 1500Vrms
9. Operation Temperature Range: 0 ℃ TO 70℃

Company Contact:

  • Phone: 86--13554918626

  • Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen, Guangdong , China

  • Email: Email

Published date: August 23, 2016 -

  • Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic,Lan Transformer, Audio transformer.

    The products are widely used in networking and communication equipments such as HUB,PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
    1) 10/100/1000M LAN pulse transformer and filter
    2) RJ45 connector with 10/100/1000M magnetic
    3) T1/E1, T3/DS3/E3.STS-1 interface line transformer
    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
