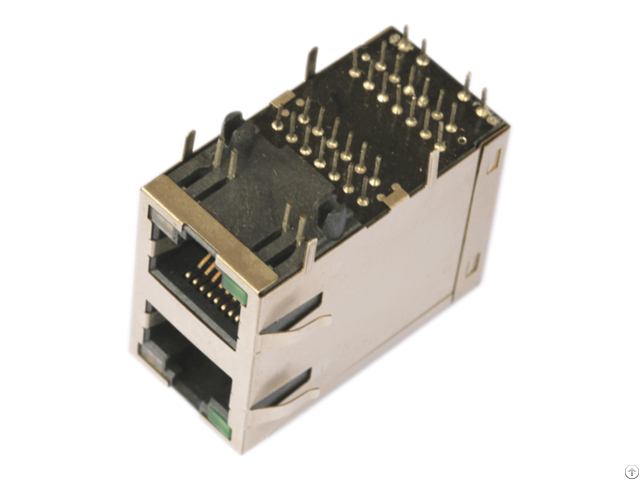

2x1 Rj45 Connector With 10 100base T Integrated Magnetic Trj17202cnl - China

price: 1.10 Dollar US$

10/100Base-T Connector with Transformer
With EMI-Finger without led
Tab Up Tab Down
2X1 Ports
Pin type: the solder
UL, Reach, RoHs, ISO9001:2008
Free sample available for testing

1. Designed to support application, such as SOHO(ADSL modems), Lan-on-motherboard(LOM), hub and switches.
2. Meets IEEE 802.3 specification
3. Connector Materials:
Housing Material: Thermoplastic PBT+30%G.F UL94V-0
Contact Material: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min. In contact area
4. Wave solder tip temperature: 265℃ Max, 5 Sec Max
5. UL Certification: File Number E321120

Electrical Specifications: TEST NOTES (25±5℃)
1. Inductance OCL:
350uH MIN @ 100KHz, 01V 8mA DC Bias
2. Turn Ratio(±3%)
3. DCR: 1.2Ω MAX
4. Insertion Loss:
-1.0dB MAX @ 1-100MHz
5. Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @60-100MHz
6. Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Common mode rejection ratio(CMRR):
-30dB MIN @ 1-100MHz
8. Hi-Pot: 1500Vrms
8. Operation Temperature: 0 to 70℃

Company Contact:

  • Phone: 86--13554918626

  • Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen, Guangdong , China

  • Email: Email

Published date: August 23, 2016 -

  • Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic,Lan Transformer, Audio transformer.

    The products are widely used in networking and communication equipments such as HUB,PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
    1) 10/100/1000M LAN pulse transformer and filter
    2) RJ45 connector with 10/100/1000M magnetic
    3) T1/E1, T3/DS3/E3.STS-1 interface line transformer
    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
