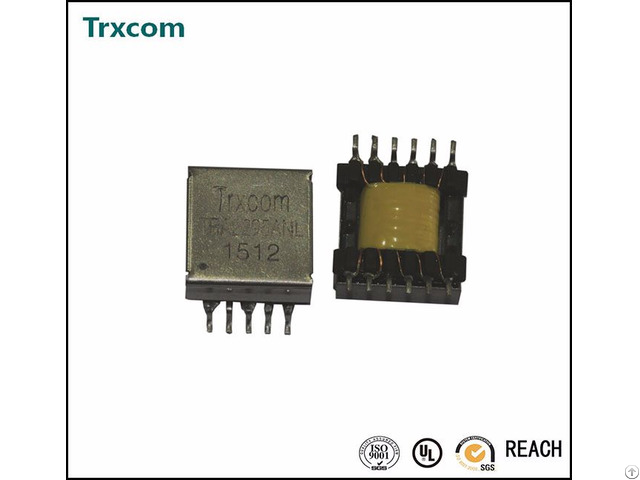

64kbps Interface Lan Transformers Trs85535nl - China

price: 1.00 Dollar US$

Single and Dual Transformer Modules
1500 Vrms minimum isolation
Temperature: -40 To +85℃
UL, RoHs, Reach, ISO9001:2008
UL File No.: E321120

1. Single and dual transformer modules for ITU G.703 codirectional applications
2. Provide 1500 Vrms minimum isolation
3. For RoHs part and suffix NL
4. RoHs NL peak solder rating 250℃

Electrical Specifications: @25℃
1. Turn Ratio: Pri: Sec= 1:2CT ±3%
2. Isolation Voltage: 1500Vrms 0.5mA ISecond (PRI to SEC)
3. PRI OCL: 20mH Minimum @100KHz 50mV
4. Cw/w: 130pF Max
5. LL: 5.0uH Max
6. DCR: 2.65Ω Max Pri 5.0Ω Max Sec
7. Operating temperature: 0 to 70℃

Company Contact:

  • Phone: 86--13554918626

  • Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen, Guangdong , China

  • Email: Email

Published date: August 26, 2016 -

  • Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic,Lan Transformer, Audio transformer.

    The products are widely used in networking and communication equipments such as HUB,PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
    1) 10/100/1000M LAN pulse transformer and filter
    2) RJ45 connector with 10/100/1000M magnetic
    3) T1/E1, T3/DS3/E3.STS-1 interface line transformer
    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
