Pulse Products Vertical Rj45 Connector With 10 100 Magnetic Trjd0011bgnl - China

price: 0.67 Dollar US$

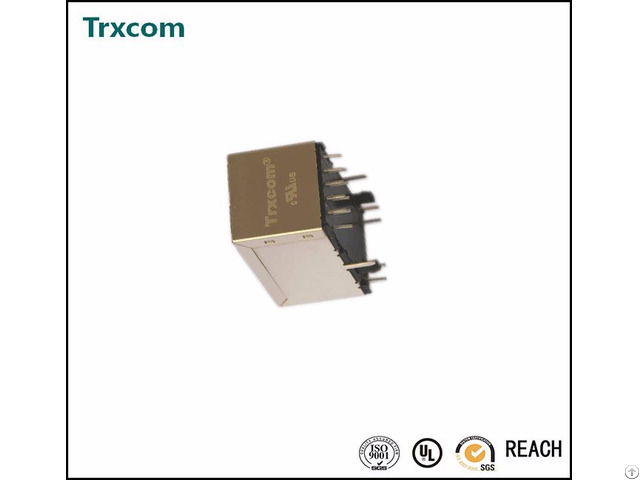

Vertical RJ45 Connector
With Led Non EMI-Finger
Length= 16.76mm
Led: Yellow & Green
Tab Up
Single Port
Pin Type: the solder
UL, RoHs, Reach, ISO9001:2008
Free sample available for testing

1. Designed to support application, such as SOHO(ADSL modems), Lan-on-motherboard(LOM), hub and switches.
2. Meets IEEE 802.3 specification
3. Connector Materials:
Housing Material: Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min. In contact
4. Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
5. UL Certification: File Number E321120

Electrical Specifications @ 25℃
1. Turn Ratio:
TX= 1CT: 1CT RX= 1CT: 1CT
2. Inductance (@100KHz 0.1V 8mA ) LX: 350Uh Min
3. Insertion Loss:
1-65MHz: -1.0dB Max
4.Return Loss (dB Min)
1-30MHz: -18 40MHz: -16
50MHz: -12 60MHz: -10
5. Cross Talk(dB Min):
-30MHzL -40 60MHz: -35 100MHz: -30
6.CMR: (dB Min)
30MHz: -30 60MHz: -20 100MHz: -20
7Hi-Pot: 1500V
8.Operation Temperature: 0 to 70℃

Company Contact:

  • Phone: 86--13554918626

  • Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen, Guangdong , China

  • Email: Email

Published date: August 23, 2016 -

  • Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic,Lan Transformer, Audio transformer.

    The products are widely used in networking and communication equipments such as HUB,PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
    1) 10/100/1000M LAN pulse transformer and filter
    2) RJ45 connector with 10/100/1000M magnetic
    3) T1/E1, T3/DS3/E3.STS-1 interface line transformer
    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
