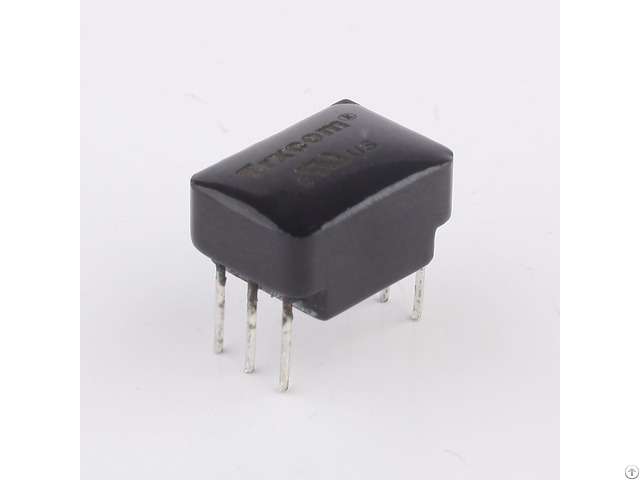

T1 Cept Isdn Pri Single Port 12pins Lan Transformer Trb12867anl - China

price: 1.00 Dollar US$

SMD Transformer
12Pins transformer
Single Port
Isolation Voltage:1500Vrms
Temperature: -40 To +85℃
UL, RoHs, Reach, ISO9001:2008
Free sample available for testing

1. T1/CEPT/ISDN-PRI Transformer.
2. With various turna ratios.
3. RoHs"NL" peak solder rating 265℃ ±5℃
4. UL Certification: File Number E321120.

Electrical Specification @25℃
1. Turn Ratios (Pri: Sec ± 2%):
1CT: 1CT & 1CT: 2CT
2. Primary Pins: 1-3, 4-6
3. Secondary OCL: 1.2mH Min
4. Cw/w: 35pF Max
5. LL: 0.60uH Max
6. DCR: (PRI) 0.90Ω Max
7. Hi-Pot: 1500Vrms
8. Operating Temperature: -40 to 85 ℃


Company Contact:


  • Phone: 86--13554918626

  • Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen, Guangdong , China

  • Email: Email


Published date: August 26, 2016 -

  • Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic,Lan Transformer, Audio transformer.

    The products are widely used in networking and communication equipments such as HUB,PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
    1) 10/100/1000M LAN pulse transformer and filter
    2) RJ45 connector with 10/100/1000M magnetic
    3) T1/E1, T3/DS3/E3.STS-1 interface line transformer
    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
