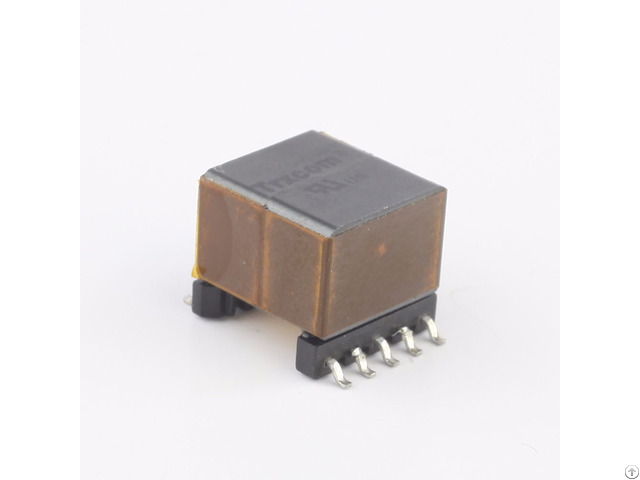

Transformer For Digital Audio Data Trs85612nl - China

price: 1.00 Dollar US$

Digital Audio Transformer
High Isolation Voltage:2kV MIN
Temperature: -40 To +85℃
UL, RoHs, Reach, ISO9001:2008
UL File No.: E321120
Free sample available for testing

1. Designed for Cirrus Logic's CS8401, CS8402, CS8403 & CS8404 ICs
2. High isolation voltage: 2KV MIN
3. For RoHs part add suffix NL
4. RoHs NL peak solder rating 250℃
5. UL Certification: File Number E321120

Electrical Specification @25℃
1. Turn Ratio: 1:1(±5%)
2. Primary Inductance: 2.5mH ± 20% (10KHz 0.1V)
3. LL: 0.50uH Max
4. Rise Time: 25 nsec MAX
5. ET: 20V - usec MAX
6. Bandwidth: 100KHz-55MHz: 3dB TYP
7. Return Loss: 100KHz-10MHz: 20dB MIN
8. Isolation: 2000Vrms MIN
9. Operating Temperature: -0 to 70℃


Company Contact:


  • Phone: 86--13554918626

  • Address: 4/F,3 BLDG,No.3 Industrial Zone,Minzhi Villiage,Longhua Town,, shenzhen, Guangdong , China

  • Email: Email


Published date: August 26, 2016 -

  • Business Description: Trxcom is the leading manufacturer of RJ45 connector with magnetic,Lan Transformer, Audio transformer.

    The products are widely used in networking and communication equipments such as HUB,PC card, Switch, Route, PC Mainboard, SDH, PDH, IP Phone, Xdsl Modem.
    1) 10/100/1000M LAN pulse transformer and filter
    2) RJ45 connector with 10/100/1000M magnetic
    3) T1/E1, T3/DS3/E3.STS-1 interface line transformer
    4) ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
