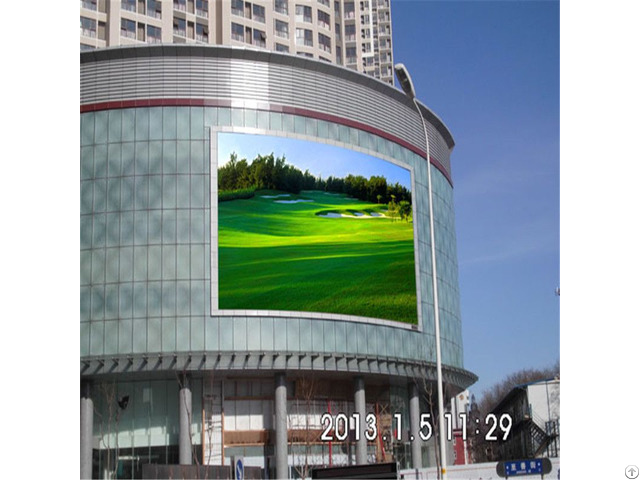

New Products Environmental Led Screen Smd P8 Cricket Live - China

price: 1.00 Dollar US$

Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Model Number:
outdoor SMD P8
Tube Chip Color:
Full Color
Display Function:
Screen Dimension:
Module size:
256mm x128mm
led screen smd p8 cricket live
Other name:
live video cricket match led screens
Live Events Led Display
Pixel pitch:
Viewing angle:
H120 V120
Packaging & Delivery
Packaging Details:
led screen smd p8 cricket live Packing:pearl wool + carton + wooden case or flight case
Delivery Detail:
Shipped in 15 days after payment
New products environmental led screen smd p8 cricket live Product Description
Specification of led screen smd p8 cricket live
No. specs outdoor full color PH8
1 Pixel structure SMD, 3535
2 Pixel pitch 8mm 3 Pixel density 15625dots/Sq. m.
4 Luminance 6000cd/Sq. m.
5 Module dimension 256mm(W) * 128mm(H)
6 Module resolution 32 pixel(W) *16pixelmm(H)
7 Module weight 270g
8 Cabinet dimension 768 * 768mm or other
9 Cabinet area 0.59 sq. meter or other
10 Screen weight 40~60kg/m2
11 Optimal visual distance > 8m
12 Visual angel 140 degree (H/V)
13 Max power consumption 1290w /Sq. m.
14 Average power consumption 645w /Sq. m.
15 Brightness adjustment Adjust according to the enviroment
brightness software (0%-100%adjustable)
16 Drive mode 1/4 dynamic scan, constant current
17 Input voltage AC 110~240 volts
18 Operation temperature -40° C~ +60° C
19 Operation humidity 10%~90%
20 Input signal DVI, MPG, AVI, WMV, RM etc.
21 Control system DVI card + master control card + receiver card
22 lifetime (50% brightness) >100, 000 hrs
23 Malfunction dot rate 1/10000
24 Cabinet material Epoxy paint coated Cold rolled steel iron/Aluminum 25 Data interconnection UTP Cat 5/Optical Fiber
26 Application: Rental / Permanent installation available

Company Contact:

  • Phone: +86 021 60709506-820

  • Address: No.5239 Beisong Rd, Songjiang district., Shanghai, Shanghai, China

  • Email: Email

Published date: May 26, 2017 -

  • Business Description: Shanghai Ledlord Optoelectronic Co., Ltd. is a high-tech enterprise, committed to LED display R&D, manufacturing, sales, installation, debugging, service and providing customers with a complete set of solutions and OEM services.
    With years of experience, Ledlord has been one of the most trusted led manufacturers in East China. In the future, Ledlord will face the global market, which has been exported to South Korea, India, Spain, Russia, Guatemala, Singapore, Turkey, the United States, etc. The products include advertising, bank, real-estate, stadium, exhibition hall, curtain wall, leasing and so on.
    Ledlord has professional engineering and technical R & D group, who continuously carries on product development and production process improvement, providing customers with the most competitive product.
    With the guide of business philosophy "criterion, innovation
    concentration",Ledlord has got more than tenpatents technologies. Ledlord comprehensively enforces international management. All products have been through the high and low temperature, dust proof, waterproof and vibration test. Outdoor products have been reached IP66 or above standards.
    Ledlord Electronics LED display is the guarantee of industry quality and confidence, who strictly improves the Quality Management System on the basis of the quality system ISO: 9001:2008. Ledlord products have passed CCC, CE, FCC and RoHS certifications, which highly ensure the LED products reliable performance and customers’ high quality requirements.
