1000vdc Super Wide Input Voltage Dc Converters - China

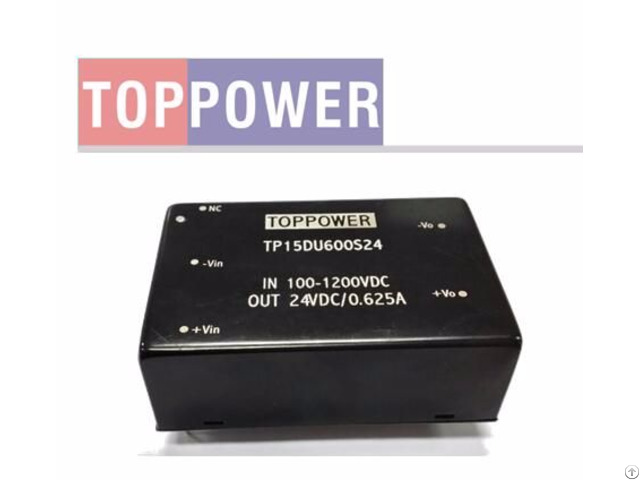

100-1000VDC super wide input voltage DC/DC converters, The rated output power of TP15DU converters is 15W, it is 100-1000VDC super wide input voltage range, High Efficiency, High reliability DC/DC switch power supply, can be widely used in photovoltaic power generation and high frequency inverter and other occasions, provide a stable working voltage for the load equipments, And its built-in multiple protection function can improve the module power supply & Load safety performance under abnormal circumstances .

Operating temperature : -40ºC to 85ºC High Efficiency, Low Ripple and noise Output overload&short circuit protection

100-1000VDC super wide input voltage range Both for AC and DC input voltage Industrial, military-Level product design Designed for photovoltaic power generation, wind power and other ancillary equipment

SELECTION GUIDE

Part Number Input Voltage Output Efficiency

(Typ)

% Others Voltage (VDC) Current(A) Current

(A) isolated

(VAC) Ripple and noise (Typ) Maximum capacitive load Rated Range values TP15DU600S05 600 100-1000 5 3 76 2500 100mv 1000

TP15DU600S12 600 100-1000 12.1 1.25 78 2500 100mv 470

TP15DU600S15 600 100-1000 15 1 79 2500 100mv 470

TP15DU600S24 600 100-1000 24 0.625 80 2500 100mv 100

TP15DU600D12 600 100-1000 ±12 ±0.625 79 2500 100mv 100

TP15DU600D15 600 100-1000 ±15 ±0.5 79 2500 100mv 100
