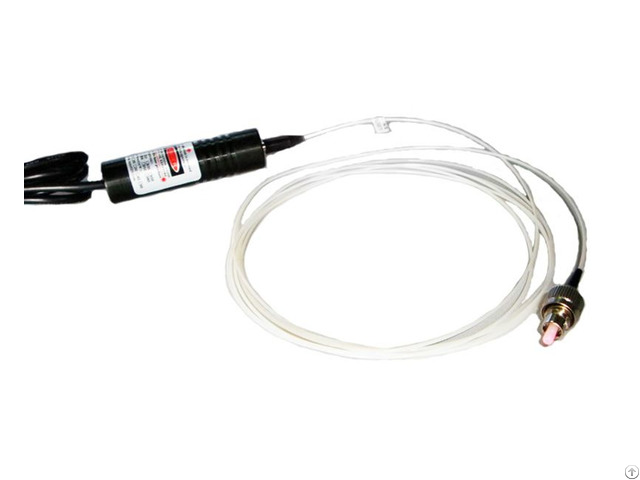

Fiber coupled laser module

Our fiber pigtailed laser products have multi-wavelength choices covering the spectra band from blue to IR, which including 405nm, 457nm, 473nm, 532nm, 635nm, 660nm, 671nm, 785nm, 808nm, 1064nm, and others customized colors.

Varied options of fibers (Single-mode, PM and Multi-mode) and customized fiber output collimators are available at the same time.

Featured with high reliability performance under laser wielding technology and low cost design, Fiber Pigtailed Lasers are idea solutions of bringing flexibility and convenience to industrial opto-electronic system design and maintenance by replacing traditional free-space lasers and color combiners without adding cost burden.

The Fiber Pigtailed Laser Family covers a wide range of applications in Laser Aiming, Biomedical Instrumentation, and Raman Spectrometer, Digital Printing and other measurement systems.

Laser module Specifications: Fiber Coupled Laser Module Wavelength: 405nm, 457nm, 473nm, 532nm, 635nm, 658nm, 671nm, 780nm, 808nm, 980nm, 1064nm

Output Power: 0.1mW～200mW

Beam Divergence: 1.5mrad adjust

Spatial Mode: near TEM00(SM)

Fiber Coupling Efficiency: >40%(laser diode)>80%(DPSS laser)

Fiber type: SM, MM

Company Contact:

• Posted By: Tyson Technology Co., Ltd

• Phone: 8675529365186

• Address: 6716, Internet Industry Base A, Xixiang, Baoan, Shenzhen, China, Shenzhen , Guangdong , China

• Email:

• Business Description: TYSON was founded in Shenzhen of China since 2008, Tyson Technology Co., LTD is a High-tech enterprise mainly engaged in the laser products, is specialized in R&D, production, and marketing of laser module, laser diode, laser lens, ir laser illuminator and other related optoelectronic products.

  We also provide laser solutions to meet customer demand.

  We have researched red laser module, green laser module, infrared laser module, beam expander laser module and fiber coupled laser (including dot laser module, line laser module, and cross laser module) and so on.

  The laser products are widely used in field of testing detection instrument, military equipment, laser medical equipment, laser marking, laser ranging, laser swinger, barcode scanning, location identification, experimental teaching, power tools, measuring ranging, cutting marking, stage lighting and laser landmarks and so on.
