Iic Uart Usb Interface Hf 13 56mhz Rfid Writer Reader Module Jmy628 - China

price: contact company for price

JMY628 is a RFID read/ write module with UART, IIC or USB port. JMY628

has various functions and supports multi ISO/ IEC standard of

contactless card. The RF protocol is complex, but the designer combined

some frequent used command of RF card and then user could operate the

cards with full function by sending simple command to the module. The

modules build in SAM slot. It could operate contact smart card according

to ISO7816. The module and antenna is integrated. The impedance between

RF circuit and antenna was tuned by impedance analyzer, and then the

module has excellent performance and stability. There is ferrite plate

between main PCB and antenna, so such design applies to some metallic-

around systems.

PCD: NXP RC522, RC523

Working frequency: 13.56MHz

Supported standard: Mifare Classic, ISO14443A, ISO14443B

Card supported: Mifare 1K/ 4K, FM11RF08, Ultra Light, DesFire, Mifare ProX, SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, T=CL CPU cards( both ISO14443A & ISO14443B)

Anti collision ability: Full function anti collision; be able to process multi- cards simultaneously; be able to set operate single card only

Auto detecting card: Supported, default OFF. The default state can be set

Power supply: DC 5V ( ±0.5V)

Interface: IIC/ UART/ USB ( select while place order)

Communication rate: IIC- - 400Kbps; UART- - 19.2Kbps/ 115.2Kbps; USB: USB 1.1 HID class

Max. command length: 254 Bytes

Interface level: UART/ IIC: 3.3V ( TTL level; 5V tolerance)

Static power consumption: 150mA

Operating distance: 80mm ( depending on card)

Dimension: 50mm* 50mm* 7.5mm

Weight: About 20g

ISP: Supported

Operating temperature: - 25 to +85°C

Storage temperature: - 40 to +125°C

RoHS: Compliant


Company Contact:


  • Phone: 861069559637

  • Address: Room 132, Building 16, Tian Qiao Wan, XinHua North, Beijing, China

  • Email: Email


Published date: May 12, 2014 -

  • Business Description: Jinmuyu is one of the leading 13.56MHz RFID reader manufacturers. We

    build, design and customize products to satisfy a range of customers.

    Our production facilities are certified under ISO/IEC10373 6, EMV2000,

    EMV2010 and PBOC 2.0 which are recognized all over the world. Our

    products support ISO/IEC14443A, 14443B, 15693 and ISO7816(T=0, 1)

    protocols and also support MIFARE 1K, MIFARE 4K, FM11RF08 C, MIFARE

    Mini, DESFire, MIFARE Plus; CPU cards(Type A/B, dual Interface, T=CL);

    SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, AT88RF020; NXP I.CODE SLI,

    TI Tag_it HF I, ST LRI and so on.

    The products contain JMY620 series which are the surface mounted design, can send and receive more than 256 Bytes APDU commands and also support FSDI=8; lower power consumption like JMY504; JMY601 (Integration antenna design); JMY501 (connection outside antenna via four lines); JMY505 (connection outside antenna via 50ohm coaxial cable); JMY680 (applies to some metallic around systems); MR800 (with LCD display); MR600 (inlay LED Nixie tube which with 8 bits LED display); the ID reader MR761 series which can support positive sequence, reverse output in hexadecimal or decimal UID, and can read the data in the card via configuration. Many of the above products contain one or more than one SAM card slots.

    At the same time, the interfaces for the reader we can offer IIC, UART, RS232C, RS485, USB (HID or PC/SC standard), Ethernet RJ45 (TCP/IP), Bluetooth and so on; and the PCD contain NXP RC500, RC531, RC632, RC400, RC522, PN512, RC523, FM1702, FM1712, FM1722; Meanwhile in order to meet the different needs of different users, we use MCU 8051, ARM7, ARM9 and ARM11 to develop the module or reader. It is worth mentioning that we also provide ODM / OEM customized products and services. Welcome to contact us, and we will provide you with the high quality products and the excellent services.

Related listings



  • 2014 Newest E Cigarette Magnet Connection Simple 650mah Or 900mah Great Vapor
    2014 Newest E Cigarette Magnet Connection Simple 650mah Or 900mah Great Vapor
    Components - Other - Shenzhen Kido Electronics Co.,Ltd. - China - May 11, 2014 - contact company for price

    Battery capacity: 650mAh/ 900mAh Battery size: Φ 14.1* 106mm Charging time: 2- 2.5 hours Battery life: 300 times Working voltage: 3.7V Atomizer resistance: 2.4ohm Atomizer size: Φ 14.1 * 78mm Atomizer capacity: 2.0ml 1 pc Battery 1 pc atomi...

  • Epoxy Fibreglass Rod

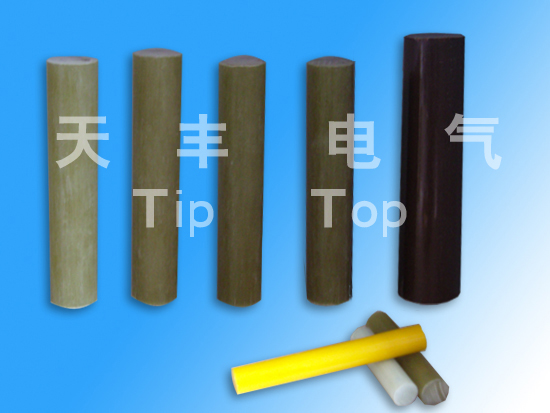

    Epoxy Fibreglass Rod
