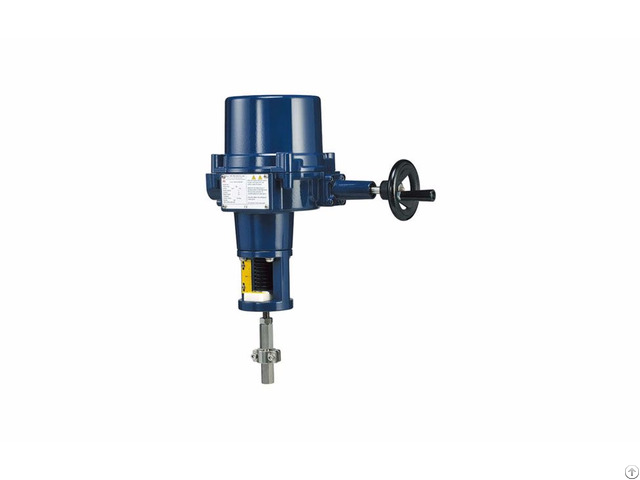

Linear Electric Actuator L500 - Taiwan

Specification:

Thrust：500 kg/1102 lb

Weight：8.5 kg/18.74 lb

Motor：8w

Mounting Flange(ISO 5210)：F07

Max.

Stroke：50 mm/1.97 inch Feature:

Enclosure:

● IP67, NEMA 4X：Water-proof and dust-proof enclosure.

● Material：Dry powder coating aluminum alloy.

Position Indicator :

● All models are equipped with continuous mechanical position indicator.

The external stem visual position indicator provides easily read and instantly available stem position.

Modulating Controller :

● Actuator can be operated according to input signal and provide the output signal for feedback.

● Input signal：4~20mA, 1~5V or 2~10V。 ● Output signal：4~20mA or 2~10V。 Adjustable Stroke :

● Allow users to adjust actuator’s stroke to match valve stem’s stroke.

(Refer to the specifications for stroke range) Motor : ● All models are equipped with DC motor and provide low power consumption, high duty cycle and efficiency.

(1500 starts per hour) Working Conditions : ● Ambient temperature：-30℃ ~ +65℃ / -22℉ ~ +149℉

● The humidity：30％ ~ 95％ Over-thrust Protection : ● If the output thrust of the drive exceeds of the drive rating, the actuator will shut off by two-step control.

The two-step control is as follows:

● First step : If the output thrust of the drive exceeds the rating, power supply will be turned off by limit switches.

● Second step : If the limit switches fail, power supply will be turned off by electronic detector.

(The function only applies to modulating controller actuator) Slow-speed operation

Besides the standard operating speed, if slower operating speed is needed, please contact with our sales person.

Conduit entrance

standard : 1/2” NPT

option : M20, 3/4” NPT

Various voltage

24V AC/DC

110/220V AC Certification:

● CE

● CSA

● RoHS
