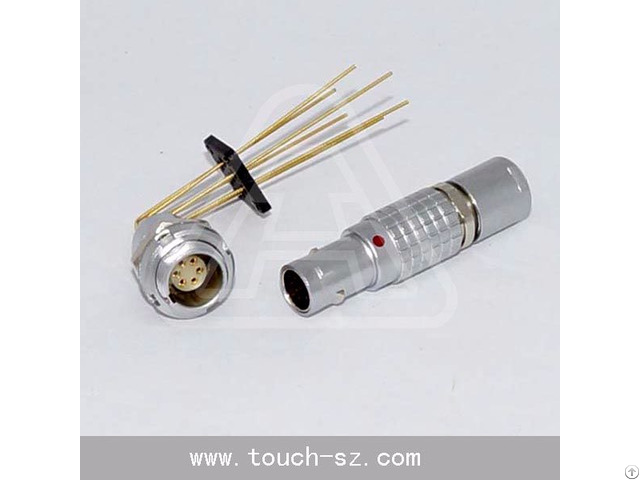

Touch 6pin Straight Plug Fgg 0b 306 Connector For Disposable Devices Sensors - China

Low voltage push-pull connectors for data, signal, electrical and power use!

TOUCHconnectors are used in instrumentation, medical devices, and anywhere a high density, high reliability, quick mating connector is needed.

These high precision connectors.

With a life span greater than 5000 insertions, complete EMC shielding, shock resistance, vibration resitance, and corrosion resistance this is the highest quality connector on the market.

Main features:

-Security of the push-pull self-latching system;

-Multipole types 2 to 26 contacts;

-Solder or print contacts(straight or elbow);

-High packing density for space savings;

-Multiple key options to avoid cross mating of similar connectors;

-Keying system for connector alignment;

-360°screening for full EMC shielding;

-Pull-away plugs with lanyards available.

Main Parameters:

Humidity (max): <=95% [at 60 deg C /140 F]

Vibration: 15 g [10 Hz - 2000 Hz]

Shock Resistance: 100 g [ 6 ms]

Salt Spray Corrosion: >144 hr

Climatical Category: 50/175/21

Shielding (min): 75 dB (10 MHz)

Shielding (min): 40 dB (1 GHz)

IP Rating: IP50
